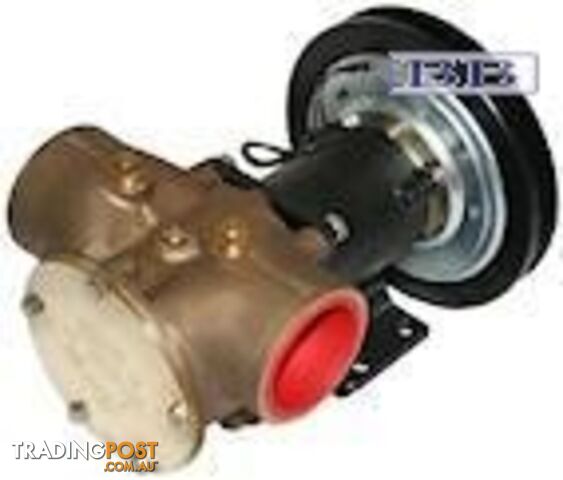

Jabsco pumps Heavy Duty Clutch Pumps 2äó BSP 12/24V 50270211 50270-2311 50270-2011 50270-2111

Jabsco pumps 50270211 50270-2311 50270-2011 50270-2111 12 and 24v j50-148 j50-149 j50-150 j50-151
Engine cooling
Very heavy duty spaced dual bearing composite pumps with mechanical seals for long life in heavy duty commercial applications. 12 or 24 volt clutch. Single B or double A section pulley. Self priming to 4.5 Metres. Flow rate : 22,000 litres per hour (4,840 GPH) at 3 metre head @ 1,500 RPM Pump size : 264mm L x 170mm W x 178mm H Fuse size : 12 volt - 5 amp fuse 24 volt - 2.5 amp fuse J50-148 Pump Brz Clutch 2" 1B 12v J50-149 Pump Brz Clutch 2" 1B 24v J50-150 Pump Brz Clutch 2" 2A 12v J50-151 Pump Brz Clutch 2" 2A 24v
Spare Parts
J53-517 Impeller 17936-0001 Neo
J53-536 Impeller 6760-0003 Nitril
J55-006 Service Kit SK408-0011
J55-196 Slinger X4020-324A
J55-208 Circlip Y5026-08
J55-209 Screw SP1095-0640

J55-210 End Cov 9336 (12062-0000)
J55-211 Gasket 816 (816-0000)
J55-212 Screw-EndCover X3001-176F
J55-213 Wearplate 2574
J55-215 Cam-Full 6988 (6988-0000)
J55-217 Screw SP1005-04(910050040
J55-218 Pipe Plug SP2650-07
J55-222 Seal SP2701-54/92701-0180
J55-223 Screw Hex X3001-180C
J55-224 Washer M6 X3083-291F
J55-227 Seal (21849 = 6408-0000)
J55-228 Bearing SP2601-0458
J55-230 Clutch 12V SP2300-0063FC
J55-231 Clutch 24V SP2300-0064FC
J55-232 Pulley 1B SP2300-0063RA
J55-233 Pulley 2A SP2300-0061RA
J55-234 Clutch Adapt 52201-0200B
J55-248 Shaft 50277-0000
