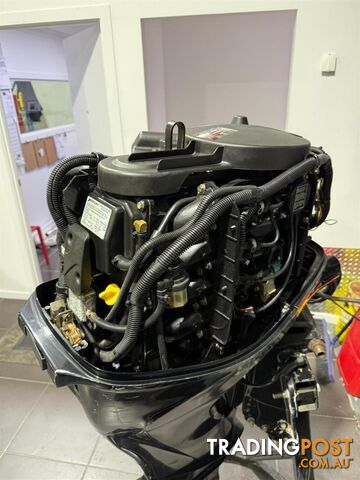

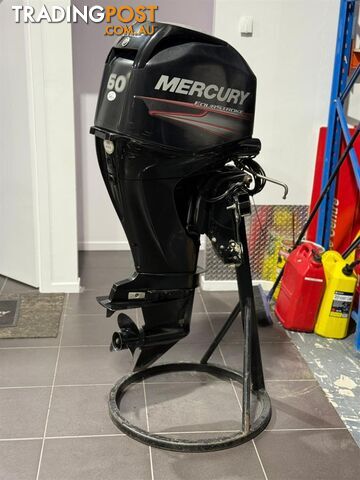

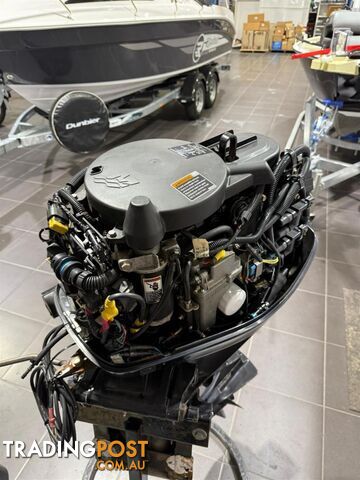

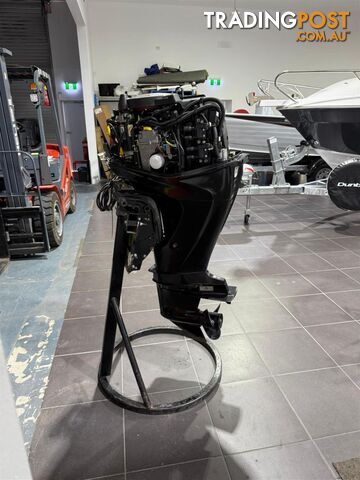

2014 MERCURY 60 HP MOTOR

PRESSURE TESTED BY DESTINY MARINE - MERCURY DEALERSHIP





Engine Specifications



Horsepower / Kilowatts: 60 HP / 45 kW








Engine Type: Inline 4-cylinder








Displacement: 60.8 cu in / 995 cc








Full Throttle Range: 5500 – 6000 RPM








Fuel Induction: 2 valves per cylinder, Single Overhead Cam (SOHC)








Alternator Output: 17 amps / 210 watts









Fuel & Oil



Recommended Fuel: Unleaded, minimum 91 RON








Recommended Oil: Mercury FourStroke 25W40 Marine Oil










Technology & Protection



Engine Protection System: SmartCraft Engine Guardian








SmartCraft Digital Compatibility: Yes










Operation & Control



Starting System: Electric (turn-key)








Steering Options:








Big Tiller Compatible








Remote








Tiller Kit Available














Dimensions & Weight



Shaft Length: 20 in / 508 mm








Gearcase Ratio: 1.83:1








Dry Weight (lightest model): 247 lbs / 112 kg










Performance & Emissions



Emissions Star Rating: 3








Bore x Stroke: 65 x 75 mm (2.56 x 2.95 in)








Ignition System: ECM 70








Fuel System: Electronic Fuel Injection (EFI)








Cooling System: Water-cooled with thermostat








Gear & Trim



Gear Shift: Forward – Neutral – Reverse (F-N-R)








Gearcase Options: Standard








Trim System: Power Trim








Exhaust: Through prop








Shallow Water Trim Range: 20°








Additional Features



Remote Fuel Tank (Optional): Yes








Color: Phantom Black
