Tohatsu Motors - MFS30C

MFS30C



High performance and easy operation:

Electronic fuel injection

The boating industrys first battery-free, manual start EFI 4-stroke

Digital CD ignition system for quicker starts

Large alternator and rectifier for superior battery charging

Adjustable steering friction and trim tab for reducing steering effort

Front mounted shift lever for easier operation

New Gear ratio 2.17:1 improves performance

Trim settings, 6 positions*

Power trim *

Remote control**

Optional Gauges available (no gauges supplied)

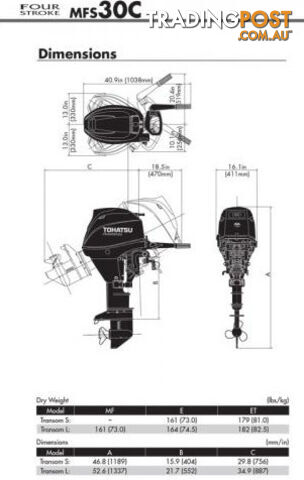

Image shown in spec.sheet below is manual version with standard tiller control. Power Tilt Fisherman (Premium Tiller) version available with optional Multi Function Tiller.

Compatible with TOCS (Tohatsu Onboard Communication System) **

Variable Idling Control (850,950,1050 r/min) for trolling purposes on Forward Control and Multi Function Tiller models only.

*Certain Models **Remote Control Models *** Optional cables Gauges Required



Fundamentals for user convenience and reliability:

Stainless steel water pump housing for outstanding durability

High grade marine aluminium alloy that provides the ultimate protection against corrosion

Zinc coating on internal water passage for superior corrosion resistance

Decompression device for ease of manual starts

25ltr Fuel tank includes fuel fitting and fuel line

Aluminium propeller

Warning and protection:

Low oil pressure warning (visual and audible)

Overheat warning (audible)

Safety Lanyard

Start-in-gear protection

Over-rev limiter



Engine:3-Cylinder

Displacement:526cc (32.09 cu. in.)

Bore & Stroke:61 x 60mm (2.4 x 2.36 in.)

Starting:Electric & Manual or Manual

Controls:Tiller Handle or Remote Control

Gear Shift:Forward - Neutral - Reverse

Gear Ratio:2.17 : 1

Propeller Pitch Range:8 - 14

Transom Height:15, 20

Fuel:Unleaded Gasoline (87 Octane)

Oil Type:Tohatsu 4Stroke Engine Oil Refer Owners Manual

Fuel Tank:25 ltr separate tank

Weight (Min Version):

71.5 kgs

RPM Range:     5250  -  6250
