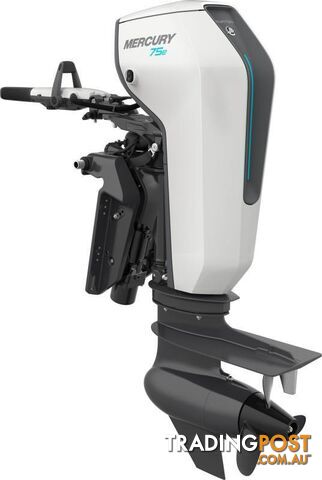

MERCURY AVATOR 75E ELECTRIC OUTBOARD

Whether you’re relaxing in the sun or chasing fish in a tinny, the enhanced power of the Avator™ 75e Electric Outboards gives you the freedom to expand the horizon and amplify your adventure.

Intuitive Innovation

Modular Batteries

Avator™ 75e and 110e outboards can be configured with up to four 5400Wh batteries, all connected through the 5400 power centre for seamless integration and convenient single-point charging

5400 Power Centre

The 5400 power centre is an integrated hub that distributes power from the battery bank throughout the system. It can also charge up to four connected batteries simultaneously from a single charging port.

Power Tilt

The power tilt system makes it easy to dial in performance or raise the outboard in shallow water. You can adjust tilt effortlessly for maximum efficiency and performance.

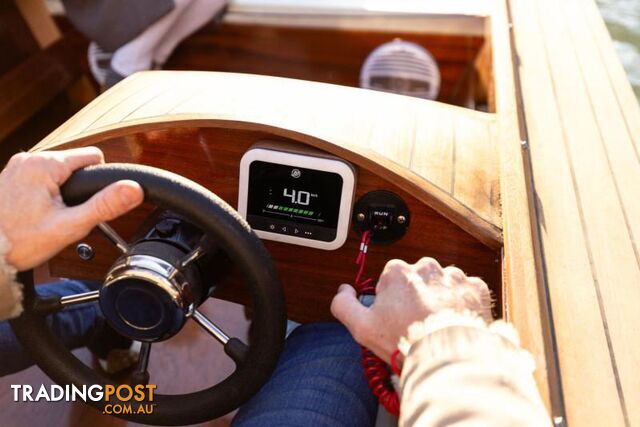

Digital Controls

For console boats, digital remote controls deliver instant throttle response, confident shifting, and power tilt control with zero hesitation for easy, safe piloting. Controls are available in three styles to fit a range of centre and side-console mounting positions.

Transverse Flux Motor

Industry-first transverse flux motor technology delivers immediate torque and reliable, efficient power. The motor turns a high-thrust three-blade aluminum prop that further optimises battery life.

Tiller Handle

The available tiller for the Avator 75e allows boaters to take control with confidence. The handle adjusts up and down for comfortable steering from any position, incorporates an integrated tilt switch and digital shift controls, and folds up when not in use.

Engine type


Avator



Input Power


8.6kW



Rated Prop Shaft Power


7500W



Rated Voltage


48V



Battery


5376Wh - LiFePO4



Battery Type


Li-Ion



Battery IP Rating


IP67



Charger (Standard)


520W; 1050W



Total Drive Weight


54.4 kg



Battery Weight


42 kg



Steering


Remote
Tiller

Shaft Length
15" / 381 mm
20" / 508mm
25" 635 mm

Standard Propeller
8P
9P
10.5P
ENGINE 1
Engine Make Avator
Drive Type Outboard
-
- Price: POA AUD
- Brand: Mercury
- Model: Avator 75e Electric Outboard
- Condition: New
- State: South Australia
- Suburb: KADINA


- Engine Make: Avator
- Drive Type: Outboard
