TRAX

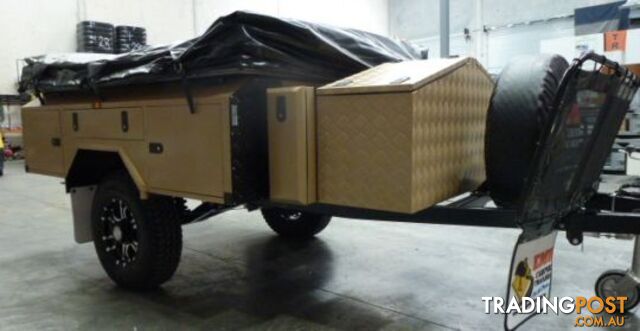

TRAX - Off Road Camper Trailer

Our Off-road TRAX model will suit a large number of tow vehicles due to its tare weight, load rating & robust independent suspension suiting a huge number of our clients requirements.

EMU specialises in matching your tow vehicle with the most appropriate off road camper trailer to suit your intended use. To enable us to achieve this result we engineer a broad range of from Road orientated to extreme Off Road.

HIGHLIGHTED INCLUSIONS
Spare Wheel
Stoneguard
Quality 12cm Innerspring Mattress
Bike Rack Mount
Rear Recovery D Shackles
Stainless Steel Water Tank
Stainless Steel Kitchen with Bench
Independent Suspension
120AH AGM Battery + 12v Outlets

TRAILER SPECIFICATIONS

DESIGNED USE: SUV/AWD with a 1450kg braked towing capacity
BODY PROTECTION: Underbody Sealer, Proof Coated & Mud Flaps
BRAKES: 10″ Electric Drums with a Mechanical Hand Brake
CHASSIS: 5 x RHS Cross Members 75x50x3mm
CONSTRUCTION: Fully Welded Zincanneal Body with sealed seams
COUPLING: 360° ‘Poly Block’ Off Road + Vehicle Adapter
DRAWBAR: Welded RHS Extended 2.0m long – 100x50x4mm
JOCKEY WHEEL: 10″ Heavy Duty ‘Swing Up’ type
STABILISERS: 2 ‘drop down’ adjustable legs
STONE GUARD: Full Width Galvanized with Mesh and Mud Flaps
SUSPENSION: Adjustable Independent Coil with Quality Shock Absorbers
TRAILER LOCKERS: Recessed Side Boxes. Automotive rubber seals
WARRANTY: 5 year drawbar and chassis, 12 months on Components
WEIGHTS: Tare: 920kg – ATM: 1450kg – Pay Load: 530kg
BALL WEIGHT: 100kg Empty
WHEEL/TYRES: 3 x 235/75 R15 A/T Tyres on 6 Stud Alloy Rims

INCLUSIONS

BIKE RACK: Provision for Rear bike rack tongue / receiver
HOLDERS: 9kg gas bottle holder, 2 x 20lt Jerry Can holders
INTERNAL PROTECTION: Carpeted Flooring in trailer

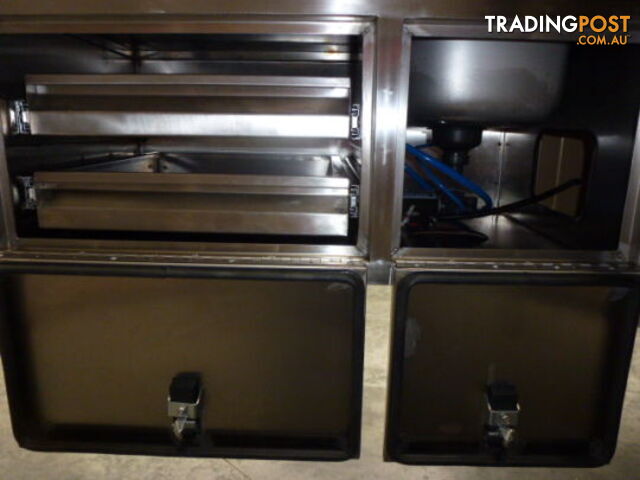

KITCHEN: S/S with Drawer, mounted on ‘Swing Out’ Tailgate & flip bench

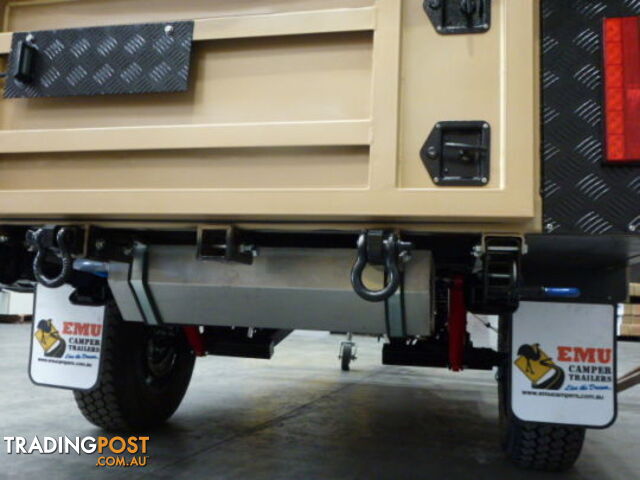

RECOVERY POINTS: Dual rear rated Heavy Duty recovery shackles
TRAILER ACCESS: Dual ‘lift up’ access panels under mattress

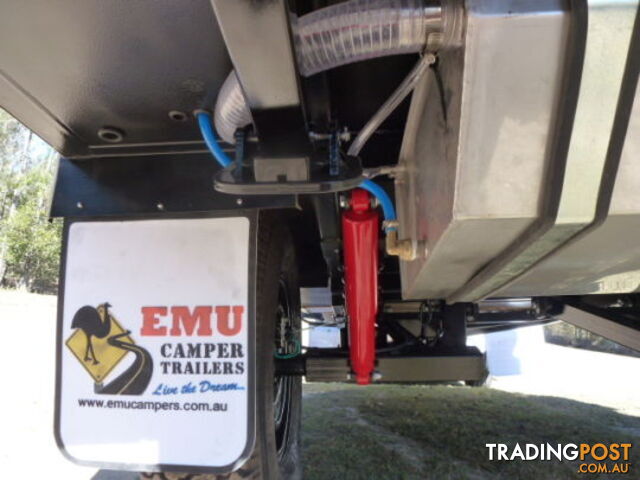

WATER TANK: 80lt Stainless Steel with Protection Guard &12V Pump

ELECTRICAL

12V OUTLETS: Yes – 12v + dual USB outlets
ANDERSON PLUGS: Yes – Connected to Battery & Fridge
BATTERY: Yes – 1 x 120amp AGM Deep Cycle
FAN 12V: Fitted to Fridge Compartment
TRAILER PLUG: Included to suit your tow vehicle

TENT/CANVAS

ANNEX: Roof, Walls, Wind Flaps, Floor & Poles included
BED: KING Size Innerspring 2030mm x 1830mm
CANVAS: Heavy Duty ‘Close Weave’ 440g/m2 (15.5oz)
FLOORING: Heavy Duty 600 gsm PVC in Dark Grey for Main Tent
WATER PROOFING: German ‘Spun Core Thread’ to seams
VENTILATION: Midge Proof Screens / Bedroom Window Awning
REAR ROOM: OPTIONAL – $695
TENT ERECTION: 5 minutes for Main Tent
TROPICAL ROOF: Reduces Internal Heat by up to 8 degrees
WINDOWS: Both Internal & External window coverings
ZIPPERS: ‘Self Repairing’ type to all Windows & Doors

DIMENSIONS

FRIDGE STORAGE: Slide 950L x 530W x 575H with Anderson Plug
TOWING SIZE: 4.5m long x 1.8m wide
TRAILER INTERNAL: Huge 2200 x 1220 x 500 (1.34m3)
POLE CARRIER: 1520 x 200 x 500H with 2 lockable full height doors
