XPANDA MKII

XPANDA MKII - Best Forward Fold Camper Trailer

The XPANDA MKII is the next stage in the evolution of this grand Forward Fold Slide out Bed Camper Trailer design. It boasts the biggest storage capacity of all camper trailers in its class, with a clever layout and design. All the bits and pieces you would expect for a grand holiday are included in this model, nothing extra to spend!!

Perfect for larger families, the Xpanda MkII will have you completing the “Big Lap” in luxury.

TRAILER SPECIFICATIONS

DESIGNED USE: 4WD Off Road with a 2400kg Braked ATM
BODY PROTECTION: Underbody Sealer, Proof Coated & Mud Flaps
BRAKES: 12″ Electric Drums with a Mechanical Hand Brake
CHASSIS: RHS Galvanised 50x50x4mm Proof Coated
COLOUR/FINISH: Baked Enamel 2 Pack
CONSTRUCTION: Fully Welded Zincalume Body with sealed seams
COUPLING: Cruisemaster DO35 Hitch 3.5T
DRAWBAR: Full Length RHS Galvanised 120x50x4mm
JOCKEY WHEEL: 750kg rated ARK XO Off Road Dual Wheel
STABILISERS: 4 ‘drop down’ adjustable legs
STONE GUARD: PVC Padded Wrap around guard
SUSPENSION: Independent Coil Springs with RidePro Shock Absorbers

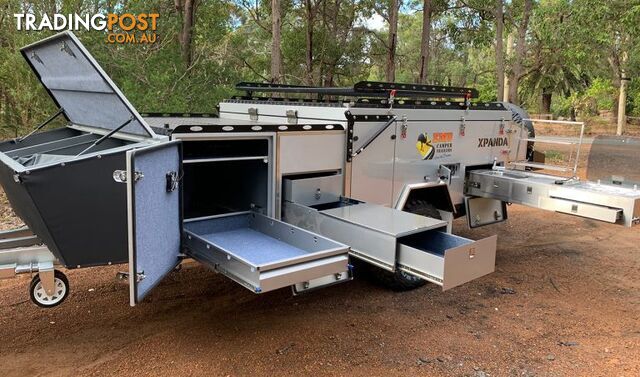

TRAILER STORAGE: Multiple storage compartments inside and out, huge under bed Storage with 3 Drawers, Slide out Kids bed storage cupboards
WARRANTY: 5 year drawbar and chassis, 12 months on components
WEIGHTS: Tare: 1900kg – ATM: 2400kg – Payload 500kg
BALL WEIGHTS: 120kgs Empty
WHEEL/TYRES: 265/75 R16 Tyres on 6 Stud Alloy Rims

INCLUSIONS

ACCOMODATION: Sleeping for 6
BIKE RACK: Provision for Rear bike rack tongue / receiver
BED: 12cm Queen Size 2000×1500 Memory Foam Mattress, 2 x Double sizes foam Mattress Beds
HOLDERS: 1 x 8.5kg gas bottle holder, 1 x 3.7kg gas bottle holder, 2 x 20lt Jerry Can holders

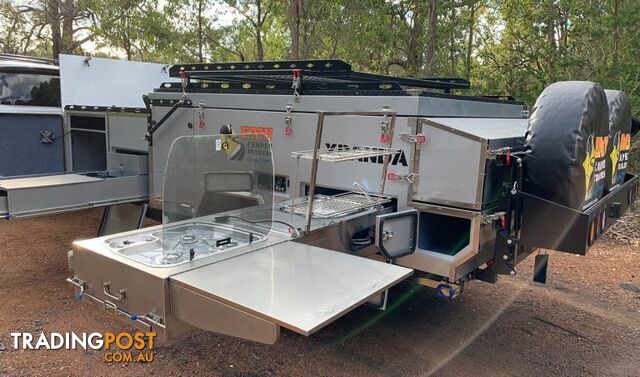

KITCHEN: Thetford Stove, sink, dish drainer 12v Light, bench Extension & Australian LPG Compliance. Hot Water plumbed
RADIO/STEREO: Digital media player with AM/FM/CD/MP3/Bluetooth
RECOVERY POINTS: Dual rear rated Heavy Duty recovery shackles
SHOWER: Smarttek Black Instant Gas Hot Water Shower systemWATER TANKS: 210lt total Capacity
WINDOWS: Both Internal & External window coverings

ELECTRICAL

12V OUTLETS:Yes – 12v + dual USB outlets240V:Yes – Australian fitted with RCD and multiple outlets
ANDERSON PLUGS: Yes – Connected to Battery & Fridge
BATTERY: Yes – 2 x 135AH Lithium Batteries
CHARGING: Projecta Intelliwave 25A Charger & Anderson Plug.Multiple USB and 12v plug in outlets
FAN 12V: Fitted to Fridge Compartment

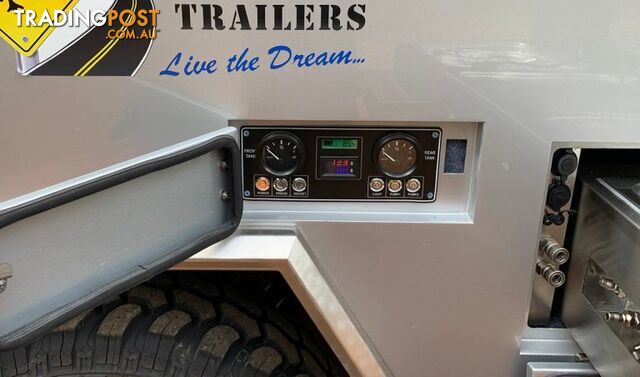

GUAGES: Volts & Water Level Indicators
SOLAR PANEL:  200W Folding Solar Panel with Regulator supplied
TRAILER PLUG: Included to suit your tow vehicle

TENT/CANVAS

ANNEX: Roof, Walls, Wind Flaps, Floor & Poles included
ENSUITE: Double size quick dry PVC Vinyl
CANVAS: Heavy Duty ‘Close Weave’ 440g/m2 (15.5oz)
WINDOWS: Both Internal & External window coverings
ZIPPERS: Self Repairing’ type to all Windows & Doors
TROPICAL ROOF: Reduces internal heat by up to 8 degrees

DIMENSIONS

FRIDGE SLIDE AREA: 980L x 610H x 540W with LED Lights, one touch slide & cable track
PANTRY SLIDE: 410W x 350H x 760L
TOWING SIZE: 5.6m long x 2.2m wide x 1.71m tall
