DESERT DIAMOND

Chassis:__

32, 35, 37, & 40 feet
8 Air Bag Suspension with 100mm dump feature
275/75/22.5 Low Profile XZA Michelin Tyres
Alcoa Alloy Wheels
Hi Tensile Chassis Rails
Remote Side Compartment Service Centre
12 Volt System
Wide Track Axles
Index,

Body Construction:__

Sub Structure - Galvanised 65mm x 65mm x 3mm Steel SHS
Side Wall - Galvanised 35mm x 35mm x 2mm Steel SHS
Side Wall Cladding - Fibreglass 6mm Gelcoated One Piece
Roof - Fibreglass 3mm Gelcoated One Piece
Compartments - Zincanneal 1.6mm Steel Sheet
Windscreen - 3M Urethane Bonded to Steel
Cabin Cockpit - Galvanised & P/Coated Steel Frame Construction
Frame/Body Alignment - AccuLine Lazer Alignment +/- 1mm
Air Systems - CPS Leak Detection Process
Mounting - 52 x Hi-Tensile Grade '8' bolt retention
Welded Intergration - 400amp Metal Inert Gas finished with 95% Zinc coating

House Systems & Features:__

Fresh Water Capacity - 1020 ltr
Tank 1 - 385 ltr
Tank 2 - 470 ltr
Tank 3 - 165 ltr
Grey Tank - 227 ltr
Black Tank - 135 ltr (secondary)

Toilet - Thetford Tecma Ceramic bowl with Macerator
World Class Eco Toilet system (no dumping required)

Generator - 6.6KVA PowerTech 3 Cylinder Kubota 240v/50Hz

Hot Water - Oasis Diesel Hydronic Hot Water System
Comfort heat - Oasis Diesel Coach 4 Zone Ducted Radiant Heating System

Propane (LPG) - 36 kg (4 x 9kg bottles)
Solar Roof Panels - 560 watt (4 x 140watt)

Inverter - MasterVolt 2500 watt
Battery Charger - MasterVolt 100amp/5amp House/Engine

Refrigerator - VitriFrigo DW360BTX 12volt/240volt
Washer/Dryer - Ariston AML-125 7.5kg wash & 4.5kg dry combo
Roof A/C - 2 x Air Command - Commorant R/cycle Ducted

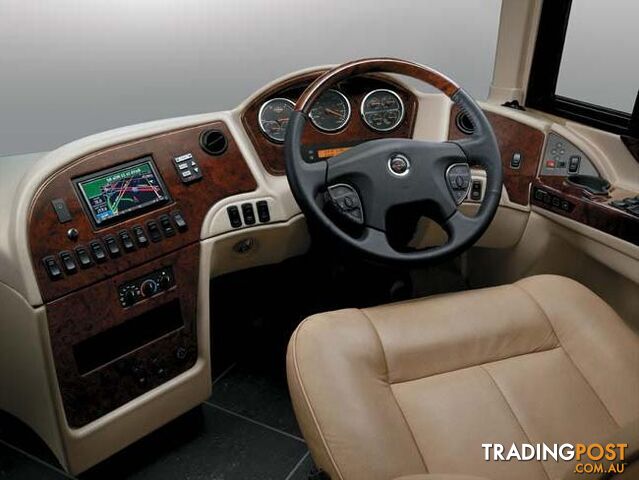

Driver Conveniences:__

World Class 2 zone ProAir A/C system
ZF Variable Power Steering
Cruise Control
Anti Lock Braking System(ABS)
Smart Steering Wheel with Controls for Wipers,Lights,Cruise
Electric Control Adjustable Brake & Accelerator Pedals
Electric Push Button Internal Sun Visors
Panoramic One Piece Windscreen
Euro Style Windscreen Wipers
Euro H4 Projection Headlights
Euro Tail Lights

Rear Axle & Suspension:__

Capacity - 10,500kg
Ride Well 4 position Air Bag Suspension
Meritor RS-21-160 Rear Axle
Ratio 4.88
Wabco Air Brakes

Front Axle & Suspension:__

Capacity - 5,500kg
Ride Well 4 position Air Bag Suspension
Hendrickson Steer Axle (Right Hand)
Wabco Air Brakes

Transmission:__

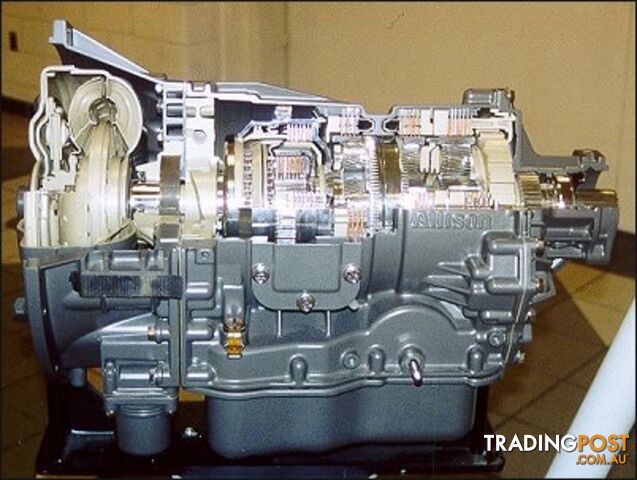

Allison 3000 Series
6 Speed Double Over/drive
Electronically Controlled

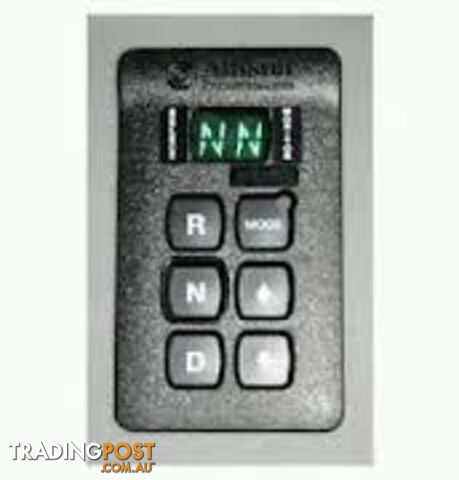

Drivers Push Button Shift Control

Engine:__

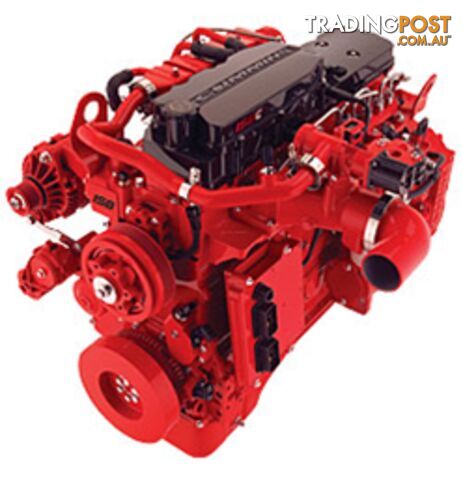

Cummins ISB 6.7ltr XT Turbo Diesel (rear mounted)
268kw(360Hp)
1085Nm(800ftlb)@1800rpm
Variable Turbo with Internal Exhaust Engine Brake
ADR & Euro Emission Compliant

Dimensions & Capacities:__

Wheel Base:
32' - 5.385 mm
35' - 6.300 mm
37' - 6.910 mm
40' - 7.825 mm
Width - 2.495 mm
Rear O/hang - 3.225 mm
Height - (Dumped) 3.800 (3.700) mm
GVM - 15.000 kg
GCM - 19.500 kg
Towing Capacity - 4.500 kg
Diesel Fuel Capacity - 385 ltr
Drivers Licence - MR
TOP

Cummins Engines Video
Allison Transmissions Video
MasterVolt Video

Exterior Graphics:__
Colour/Graphic code ~ DD213 (32 foot Coach shown)
Colour/Graphic code ~ DD104 (32 foot Coach shown)
Note:This page is currently being updated, Specifications may change without notice.

Floor Plan__
~ 32 ~
~ 35 ~
