2026 VISION RV ELYSIUM 21'6 F/3

Description

2026 Vision RV Elysium 21'6 Family Caravan (F-3 Layout)
The 2026 Elysium 21'6 Family Caravan represents the ultimate in luxury off-grid family touring. Specifically engineered for families who want to explore Australia’s most remote regions without compromise, this tandem-axle flagship offers unmatched durability, massive power recovery, and a sophisticated timber-free design. Featuring the triple bunk configuration, it provides a spacious and secure environment for the whole family, ensuring that your off-road adventures are as comfortable as they are limitless.

PRICING
5 X Mickey Thompson 35" Tyre Upgrade $2015
TOW AWAY PRICE: $201,515

2026 CORE SPECIFICATIONS
ATM: 4500kg

Power & Solar: Massive 1540W solar array (14 panels) paired with a 460Ah lithium battery and a 3000W/120A Victron inverter/charger unit.
Water Management: 270L total fresh water capacity (3 x 90L tanks), an 86L grey water tank and a 14L stainless steel urine tank.
Smart Control: Garmin Connect 50 Digital Switching System via dual tablets (one fixed and one mobile) for centralised control of lighting, airbags, and the dust reduction system.

WARRANTY
7 Year Warranty for complete peace of mind
2yr Factory
5yr Extended (transferable to future owners)

CHASSIS, SUSPENSION & RUNNING GEAR
Hot-dipped galvanised tandem axle chassis (150mm x 50mm).
Heavy-duty trailing arm independent airbag suspension with twin shock absorbers per wheel.
Cruisemaster DO35 off-road coupling (upgradable to DO45).
Ventilated disc brakes with Japanese bearings.
Large off-road wheels and tyres (285/70/R17) with a +35 offset.
Heavy-duty rear recovery points and modular rear bar for bolt-on accessories.

CONSTRUCTION & BODY
100% timber-free construction including all internal cabinetry.
Super strong monocoque composite shell providing unrivalled strength and insulation.
Single-piece honeycomb composite floor.
Industry-leading heavy-duty aluminium extrusion joining all external walls.
Electrical assist door connected to remote central locking for a superior seal.
Raptor-coated front storage box with dual sliding shelves and firewood rack.
On-board air compressor with outlet for tyre inflation and cleaning.

SLEEPING & LAYOUT
Queen-size master bed with premium pillow-top mattress.
Triple bunk configuration (F-3 Layout) with dedicated fans and charging points.
Spacious 21'6" family layout with maximum internal storage.
Stylish automotive leather lounge and dining area.

KITCHEN & DINING

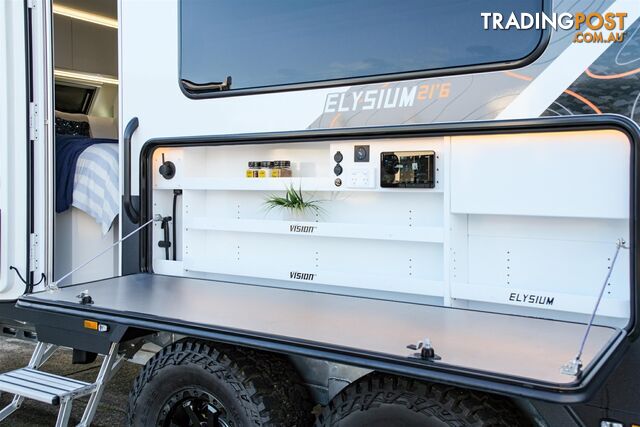

Huge external kitchen with 3-burner cooker, sink with hot/cold tap, and slide-out pantry.
Massive 274L compressor fridge/freezer.
Induction cooktop plus a 4-in-1 microwave, grill, convection oven, and steamer.
Solid surface commercial-grade acrylic benchtops.

ENSUITE & LAUNDRY
Generous internal shower with channel drain.
Vision RV simple compost toilet with a separately plumbed urine tank.
Front load washing machine included as standard.
Dual external hot/cold showers.

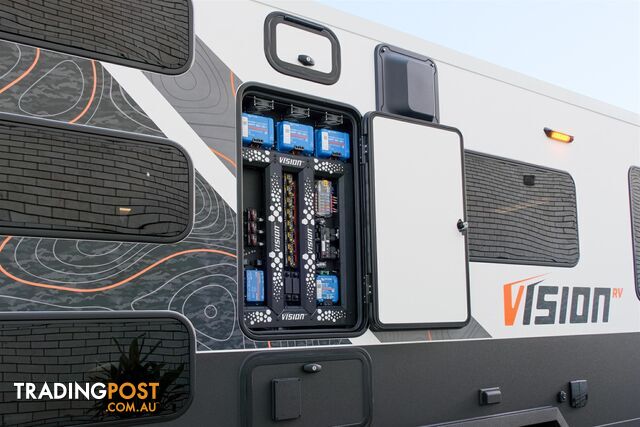

ELECTRICAL & MONITORING
Massive 1760W Solar System for industry-leading energy harvest
Massive 920Ah Lithium Battery Bank (Includes additional battery upgrade)
3000W Victron Inverter (Runs the entire 240V system including A/C)
Victron Bluetooth-compatible charging and monitoring system

HEATING, COOLING & VENTILATION
Gusto Dust Reduction System (DRS) included as standard.
Reverse-cycle air conditioning.
12V fans for each occupant (Master bed and bunks).
Truma instant gas hot water system.

WINDOWS & FITTINGS
Flat panel Euro-style windows with integrated block-out blinds and flyscreens.
Aluminium cabinetry—laser-cut, folded, and powder-coated for durability.
Lightweight honeycomb door and drawer facias with soft-close runners.

LOCATION & CONTACT
This 2026 family unit is available to view at our Dealership
For more information, speak to our friendly sales staff.

Specifications:
Tare Weight: 3,045 kg
ATM Weight: 4,500 kg
Payload Weight: 1,455 kg
Ball Weight: 153 kg
Colour: WHITE
