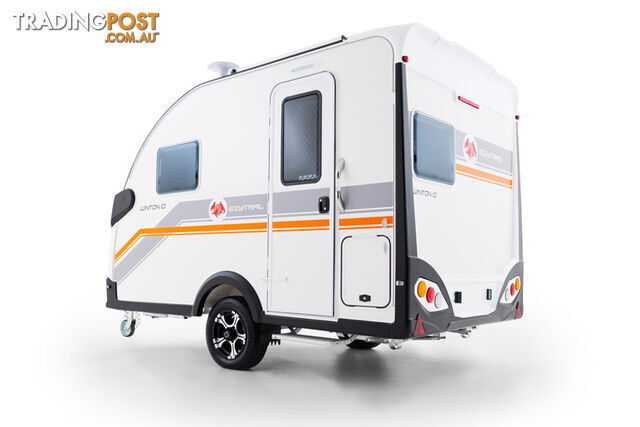

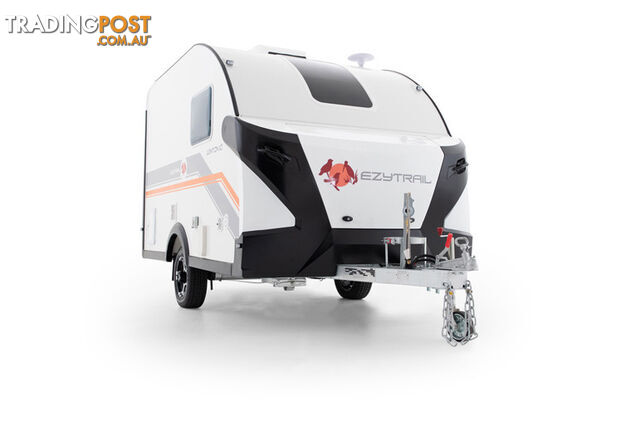

WINTON 10

DESCRIPTION

A compact caravan suited to holiday parks around Australia, the Winton 10 features everything you need to enjoy your time away. Cook up a storm in the fully equipped kitchen, keep your food and drinks cold in the 50L fridge, and enjoy the comfort of a self contained ensuite. The option of air conditioning, plus storage.

OVERVIEW
Exterior Length (mm): 4625
Exterior Width (mm): 1950
Exterior Height (mm): 2580 (with A/C)
Occupants Capacity: 2
STORAGE
Front Storage Boot: 1.9m (front open)
Internal Under Seat Storage: Standard
Internal Utility Draws: 3
Internal Utility Cupboard: 6
EXTERIOR
Type: 10.3 ft On Road Fiberglass Van
Fully Galvanized & Welded Drawbar: Standard
Fully Galvanized & Welded Chassis: Standard
Hitch: 3.5T Australian casting coupler with hand brake
ADR Compliant Safety Chain: 2
Suspension: AL-KO 1.5T torsion axle with electric brake system
Brakes: 10inch Electric brake + hand brake
Tyres: GOOD ride A/T 205/R14LT
Wheels: Alloy rims
Spare Wheel: 1x
Jockey wheel: 8inch heavy duty
Stabilizer Legs: 4x
4 x Drop Down Heavy Duty Stabilizer Legs Fully Adjustable: Standard
Ventilation: 400x400mm cutout Skylight roof vent
Gas Bottle Holder: 1x 4.5kg on the drawbar

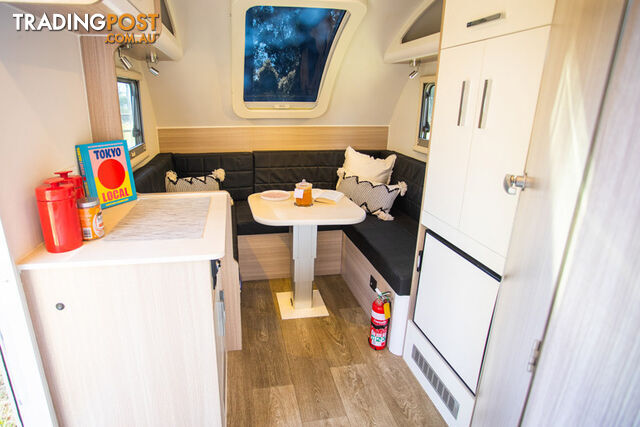

CAMPING COMFORT
Internal Kitchen: Induction cooker
Microwave oven: 240V 34L Optional
Fridge: 50L 12V RV fridge
Water Tank: 70L
Water pump: 12V – standard
Hot water system: Truma Ultrarapid LPG/Eletcric 14L
Main bed: 1900×1228/1330mm Sofa made bed
Lounge: U-shape sofa with cushions
Table: Folding
TV System: 19 inch Optional
Media Player: Multi format media, Bluetooth, radio, DVD Optional
Stereo System: 2 x speakers Optional
Lights: LED Lighting
Ensuite: Multifunctional pull-out shower tap
Cassette Toilet
TECHNICAL
Drawbar: 100x50x3.0 Q345 @1697mm
Chassis: 100x50x3.0 Q345 @ 2853x1955mm
Frame: Aluminium
Insulation: XPS core
Exterior: 1.0mm aluminium exterior skin
Suspension: AL-KO 1.5T torsion axle
Brakes: 10inch Electric brake
Jockey Wheel: 8inch heavy duty
Hitch: 3.5T Australian casting coupler with hand brake
Ensuite: In-built
Tare: 1050kg
ATM: 1500kg
Ball Weight: 70kg
ELECTRICAL SYSTEM
12V Power System: 1x 100Ah Deep Cycle AGM Battery
Battery Management System: 12amp AC/DC charger
240V Power Input: Standard
Double Pole 240V sockets: 3x
12V Cigi Socket Internal: Standard
USB Port Internal: 2
LED Lighting: 6x inner roof spotlights, 4x reading lights, 1x door light
Air Conditioner: Optional
External Courtesy Lights: Standard
Antenna: Optional
Manual Pull Out Step: Standard
Vent in Ensuite: Standard
Smoke Detector: Standard
100W Solar Panel: Optional
UPGRADES AND OPTIONS

The Winton 10 can be upgraded to include Truma air conditioning unit and external bike racks if required. The air conditioner does a great job at keeping the van cool on even the hottest days, perfect to return to after a country bike ride.

* Due to continuous product development the information & specifications supplied on our range is subject to change without notice. Please contact your nearest store for current specifications if required.
