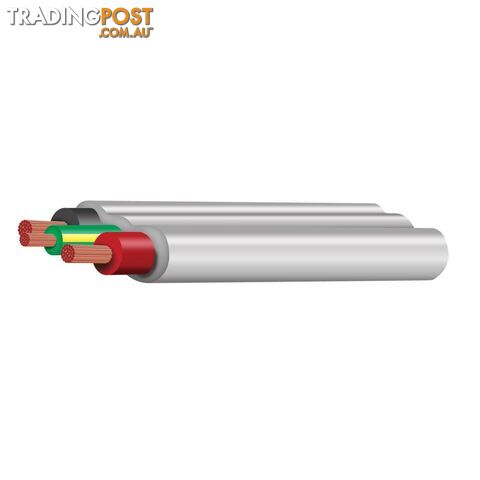

Thermoplastic Sheathed (TPS) Flat

Thermoplastic Sheathed (TPS) Flat
Product Code:500-08310
Tycab Australia is the major manufacturer of automotive cable in Australia. Tycab has been at the forefront of manufacturing automotive aftermarket and OEM cables for over 30 years. All Tycab cable are made from the highest quality Oxygen Free Plain Copper Wire and is RoHS compliant. Tycab Australia automotive cable is renowned for reliability, quality and flexibility.
Product Description

Thermoplastic Sheathed (TPS) Flat

V90 P.V.C. TO AS/NZS 5000.2 – 450/750V VOLTAGE RATING
Application: Easy-tear PVC sheath for fixed applications in power and lighting circuits in installations up to and including 450/750V
Conductor: OXYGEN FREE Plain Copper Wire to AS/NZS 1125
Insulation: RoHS Compliant V90 P.V.C. to AS/NZS 3808
Core Colours:: 2 Core: Red, Black
2 Core + Earth: Red, Black, Green / Yellow
Sheath: RoHS Compliant 3V90 P.V.C. to AS/NZS 3808
Sheath Colour: White
Packs: 100 metres



NO. OF CORES



NOMINAL AREA (mm²)



MAIN CONDUCTOR TYPE



CONDUCTOR NO/DIA (mm) Power



CONDUCTOR NO/DIA (mm) Earth

2C+E



2.5



Strand Cu



7/0.67



7/0.67



INSULATION THICKNESS (mm)



SHEATH THICKNESS (mm)



ELECTRICAL RESISTANCE @ 20°C (ohm/km)



NOMINAL O.D. (mm)



MASS (kg/100m)

0.7



1



7.4



5.5 x 12.2



14



Specifications

Part Number



Description

500-08310



240V Cable 100m Reel - 2.5MMSQ Twin & Earth White TPS Flat 450/750V 90C. BEM37067-WH-100

500-08312



240v Cable 100m Reel - 2.5MMSQ Twin & Earth Violet TPS Flat RVSPEC 450/750V. BED37067-VL-100
