Stabilius Lift-O-Mat Gas Strut Range

Stabilius Lift-O-Mat Gas Strut Range

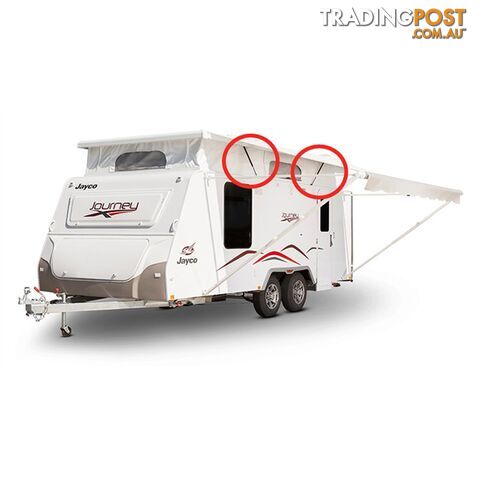

The Stabilus Lift-O-Mat Gas Struts are non-locking gas struts. They are used in a range of industries outside of RV and caravanning, such as mechanical, automotive, medical, marine, and furniture!

Product Description

They are used whenever components must be brought conveniently into a defined end position. A Lift-O-Mat can control the extension force and damping action depending on the function, ensuring user-friendly motion sequences.

Advantages and Features:

Optimised weight compensation during liftings, lowering, opening and closing actions
Broad range of sizes and force variants available as standard products
Flat Spring characteristic curve; i.e. low force increase, even with high forces and large strokes
Choice of linear, progressive or decreasing spring characteristic curves
Compact form factor for installation in small spaces
Large variety of end fittings for efficient assembly
Dampened adjustment motion over defined ranges or continuously
Extension speed control possible
Specifications
Product Code  Description
250-00202  Stabilus Gas Strut 315.5mm/50N/120mm Stroke. 5025DT
250-00204  Stabilus Gas Strut 315.5mm/60N/120mm Stroke. 658954
250-00206  Stabilus Gas Strut 315.5mm/150N/120mm Stroke. 5031DG
250-00208  Stabilus Gas Strut 315.5mm/100N/120mm Stroke. 5027DJ
250-00210  Stabilus Gas Strut 315.5mm/250N/120mm Stroke. 5033DX
250-00212  Stabilus Gas Strut 415mm/175N/150mm Stroke. 327207
250-00214  Stabilus Gas Strut (Eyelet) 455mm/200N/180mm Stroke. 847748
250-00216  Stabilus Gas Strut 485mm/250N/200mm Stroke. 094560
250-00218  Stabilus Gas Strut 485mm/400N/200mm Stroke. 83755
250-00220  Stabilus Gas Strut 485mm/125N/200mm Stroke. 807604
250-00222  Stabilus Gas Strut 485mm/600N/200mm Stroke. 083771
250-00224  Stabilus Gas Strut 485mm/200N/200mm Stroke. 083739
250-00226  Stabilus Gas Strut 485mm/280N/200mm Stroke. 266015
250-00228  Stabilus Gas Strut 501mm/100N/200mm Stroke. 860360
250-00230  Stabilus Gas Strut 525mm/200N/220mm Stroke. 083828
250-00232  Stabilus Gas Strut525mm/150N/220mm Stroke. 094595
250-00234  Stabilus Gas Strut 585mm/300N/250mm Stroke. 083909
250-00236  Stabilus Gas Strut 585mm/250N/250mm Stroke. 094641
250-00238  Stabilus Gas Strut 825mm/330N/354mm Stroke. 7645WI
250-00240  Stabilus Gas Strut 825mm/240N/354mm Stroke. 7643WS
250-00242  Stabilus Gas Strut 825mm/290N/354mm Stroke. 7644WN
250-00244  Stabilus Gas Strut 825mm/435N/354mm Stroke. 8671ZR
250-00246  Stabilus Gas Strut 825mm/500N/354mm Stroke. 8672ZR
250-00248  Stabilus Gas Strut 825mm/600N/354mm Stroke. 8673ZH
250-00250  Stabilus Gas Strut 825mm/630N/354mm Stroke. 287540
250-00252  Stabilus Gas Strut 902.5mm/525N/400mm Stroke. 556017
250-00254  Stabilus Gas Strut 195mm/200N/60mm Stroke. 1345DS
250-00256  Stabilus Gas Strut 195.5mm/350N/60mm Stroke. 4911DR
250-00258  Stabilus Gas Strut 375mm/50N/150mm Stroke. 5072DE
250-00260  Stabilus Gas Strut 825mm/700N/354mm Stroke. 8674Z
250-00262  Stabilus Stone-Shield Gas Strut Brackets. 469182
250-00264  Stabilus Replacement M8 Ball-Stud (each) t/s Gas Strut
