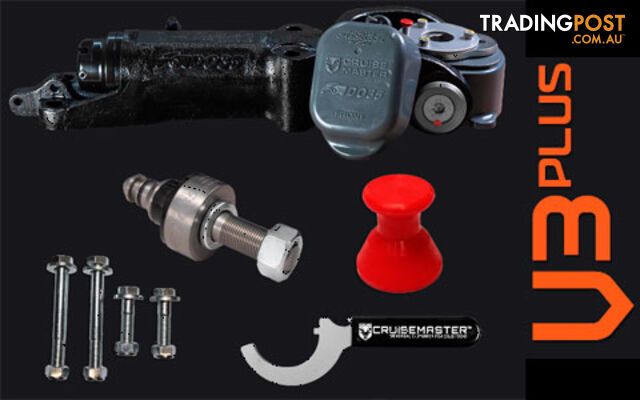

CRUISEMASTER DO35 V3 PLUS COUPLING

Description

The DO35 V3Plus takes you further than other couplings with the following features:

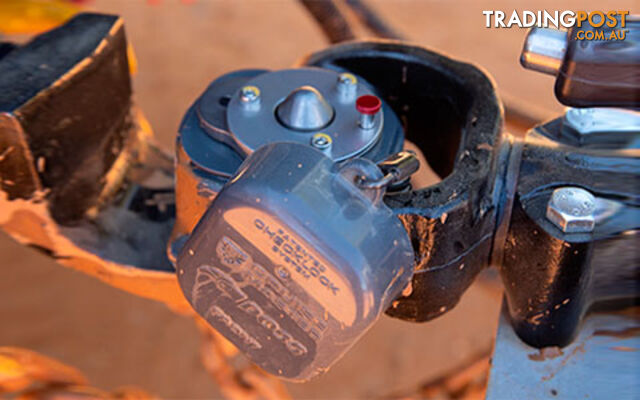

Patented ‘Checklock’ Gen.2 dust cap and bumper providing an easy secure seal
Improved bumper molding giving the reflector strip improved staying power
Rear support webbing enabling mounting upside-down on the underside of the drawbar
The Standard V3 features include:

2 Stage ADR compliant locking mechanism
Low profile bumper and cap for impressive clearance
High articulation for improved handling off-road and on unmaintained roads
Available with or without handbrake
Suitable for use with most Weight Distribution Systems
Forged yoke and rear nut for added strength
Exceeds ADR 62/01 and 62/02 strength requirements
One-piece lightweight cast jousing
Standard Aus bolt pattern for easy fitment
7/8” shaft to fit most standard tow tongues
Improved towing safety
Combination of Zn-Ni and e-coat for superior corrosion protection
Greaseable bushes for easy maintenance and noisefree towing
No towball height restrictions
R.A.T run tested and proven
Articulation: 360 degrees axial, minimum 70 degrees other axes
Locking: Fully ADR 62/02 compliant including automatic secondary lock
Bolt Pattern: 4 bolts at 185mm x 54mm
Rating: 3.5 Tonne
Action: Drop-On
Maintenance: Fully Greaseable

For instructions on installation, maintenance and use refer the DO35 User Guide.

*Please note while the DO35’s Zn-Ni with E-Coat provides superior corrosion protection it may fade with extended exposure to UV. This does not affect the operation of the DO35. To best maintain the finish of the product, we recommend covering the DO35 coupling when not in use if stored outside and exposed to direct UV.
