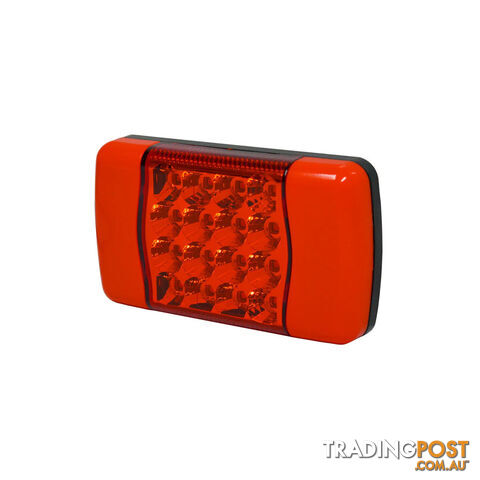

Whitevision RL180 Series Rear Signal Lamps Stop/DI/Rear Position/Reverse SKU - RL180DLED, RL180SLED, RL180RLED, RL180DLEDB, RL180SLEDB, RL180RLEDB

Specifications


Applications
• Trucks • Rigid Bodies • Buses Coaches • Custom Builds


Functions
Directional Indicator /Stop / Rear Position / Reverse


Voltage
9-33V DC Varivolt


Wattage
Indicator: 3W
Stop: 3W
Rear Position: 0.4W
Reverse: 2.5W


Mounting
Base mount with Smart Clip™ covers


Materials
Polycarbonate Lens ABS Body


Environmental
IP67 Hermetically Sealed


Cable Length
0.5M


Dimensions
177x100x31mm


ADR Compliance
Rear Direction Indicator: 6/00:Cat2a
Stop Rear Position:49/00
Reverse:1/00


CRN
RL180DLED: 46232
RL180RLED: 46233
RL180SLED: 46234



Features
Free form optics
High reliability design
Innovative end clip upgrades
Easy customised for specific applications
Fully ADR compliant
Rear Signal Lamps
WhiteVision RL180 Series SmartClip Series Rear Signal LED Lamp, Rear Signal Lamps
The RL180 Series features advaced LED optical free form reflector technology to achieve a highly styled robust lamp that can be customised to match modern vehicle and trailer designs. The RL180 series is made for heavy duty use and includes a high impact polycarbonate lens and strong ABS Base.
Fully ADR compliant for stop, rear position, direction indicator and reverse the RL180 series uses smart clip end covers which for a fully compliant rear lighting solution.
Suited to OEM and commercial applications.
-
Variations:
Lamp Type: Reverse LED - Blister
Lamp Type: Reverse LED
Lamp Type: Stop/Tail Position LED - Blister
Lamp Type: Stop/Tail Position LED
Lamp Type: Direction Indicator LED - Blister
Lamp Type: Direction Indicator LED

-
SKU: RL180DLED, RL180SLED, RL180RLED, RL180DLEDB, RL180SLEDB, RL180RLEDB
