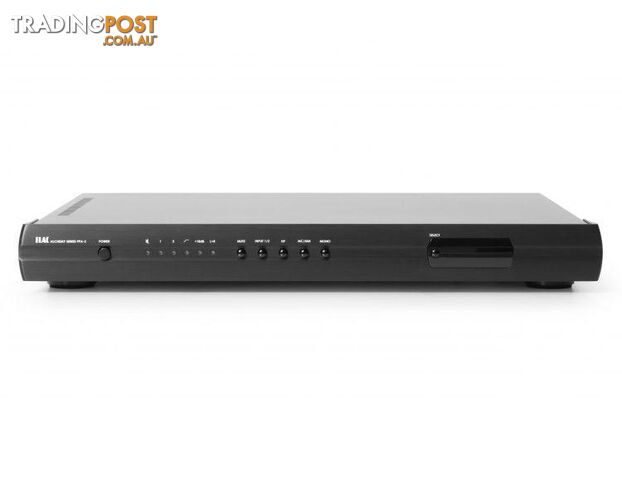

Elac Alchemy Series PPA-2 Phono Preamplifier

Alchemy performs LP magic.

The Alchemy PPA-2 is a full-featured phono preamp that uses all analog, discrete FET gain and EQ stages to transform microscopic grooves in vinyl into stunningly lifelike music. The PPA-2 can be tailored to specific cartridge requirements, with switchable gain for each channel, MC cartridge loading, and stereo or mono operation. A selection of RCA or XLR inputs and outputs adds even more flexibility to the most versatile phono preamp in its class.





Inputs: (2) RCA UNBALANCED or (1) RCA & (1) XLR BALANCED
Input impedance: 5-1KOhms variable or 47K
Frequency response: 10hz-20khz +/- 0.2dB
RIAA accuracy: +/- 0.2dB
Nominal THD+N:
Signal-to-noise ratio (1 kHz): >86dB
Output Voltage: >6.0V RMS
Crosstalk (L-to-R or R-to-L): >80dB
Single ended Gain: 42dB (low) or 60dB (high)
Balanced Gain: 48dB (low) or 66dB (high)
Output impedance: 50 Ohms

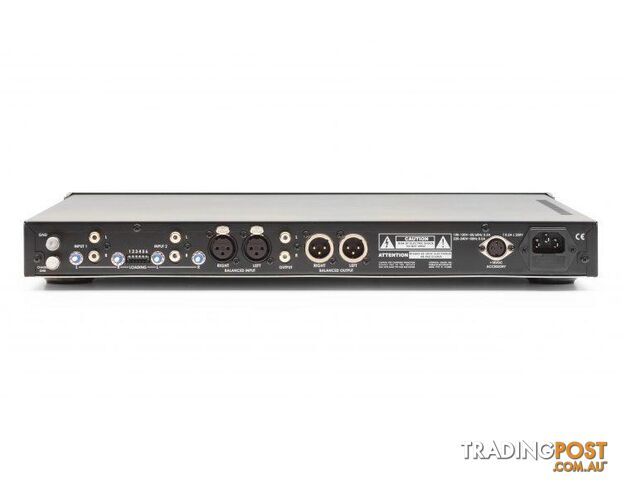

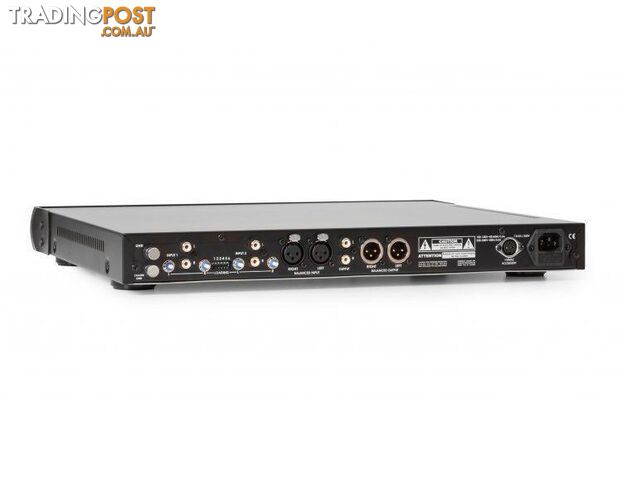

Analog Outputs: (1) XLR BALANCED, (1) RCA UNBALANCED
Available finishes: Black
Dimensions (HxWxD): 2 x 17.5 x 15 including jacks
Weight: 12 lbs.Variant: Default Title
