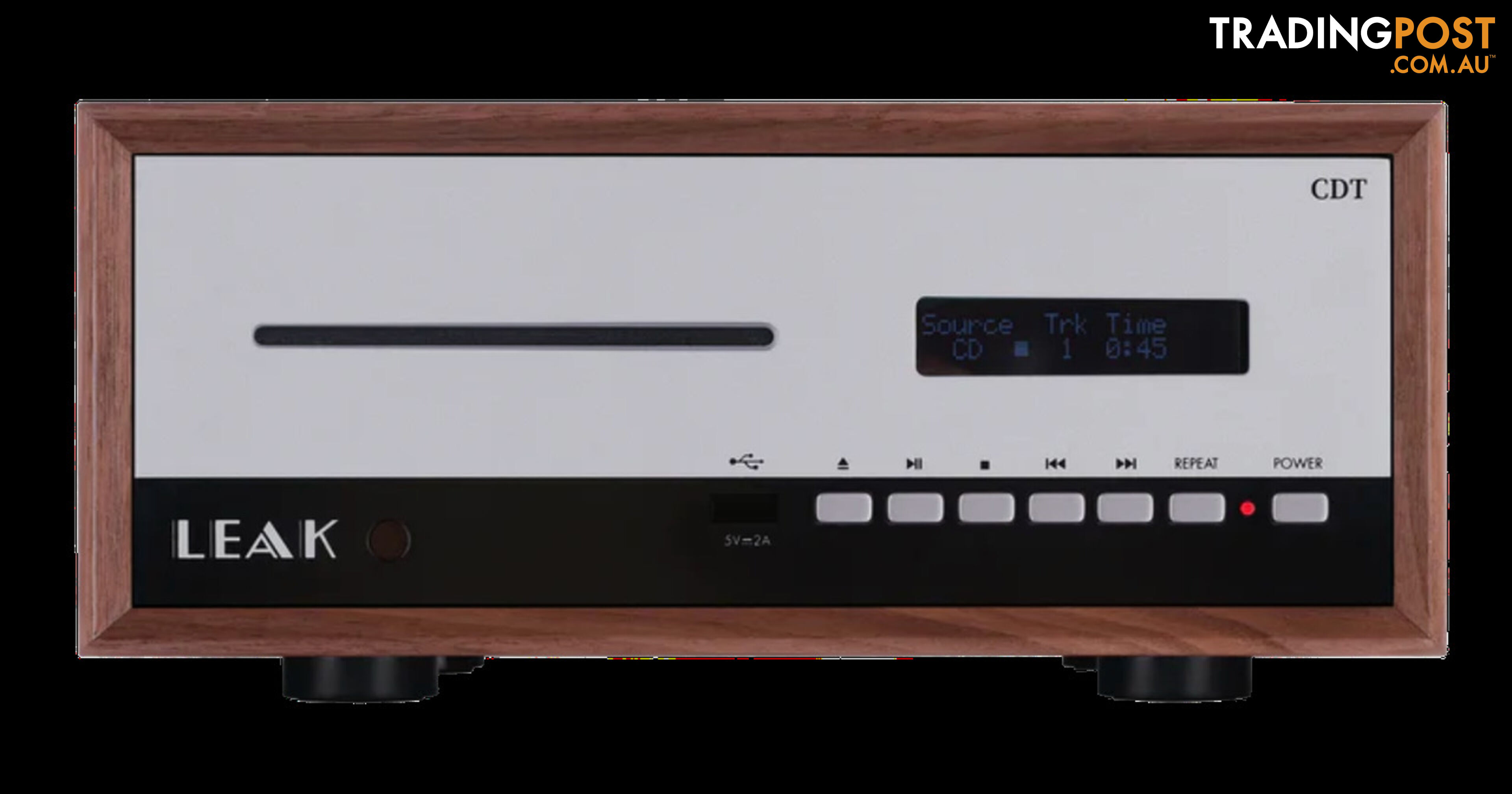

LEAK CDT CD Transport

Presenting the Leak CDT

A Legend Returns

THE POWER OF AN ICON

Owners of heritage hi-fi understand that its not about being retro but capturing the essence of an era the excellence of its music, its art, its design. This excellence is machined into the very fabric of each LEAK piece so that your every play is iconic.

For the first time in the history of LEAK, it is possible for the audio enthusiast to enjoy CD and digital media playback. The LEAK CDT offers the highest available standard of sound reproduction from CD playback within this price class.

Product Features
CD and USB digital transport with coaxial and optical outputs
Slot-loading mechanism with electromagnetic shielding
Dedicated power supply and temperature-controlled digital clock
Supports WAV, MP3, AAC, and WMA file playback via USB
Read-ahead buffering to reduce CD read errors
Low-jitter digital output for pure signal transmission
USB PLAYBACK

The LEAK CDT is also equipped with USB storage device playback functionality, utilising an ultra-smooth slot-loading mechanism that exudes quality and reliability.

The USB storage device playback functionality offers full transport controls and folder/file navigation. The LEAK CDT is compatible with FAT16 and FAT32 formatted devices and will playback media in the format of WMA, MP3, WAV and AAC.

ELECTROMAGNETIC MOUNT

The CD transport is carefully mounted within its own electromagnetically shielded enclosure with a dedicated power supply on board. Even the digital clock is controlled by a temperature-compensated crystal oscillator ensuring the digital output from both the coaxial and optical sockets has minimum digital distortion, known as jitter.

With less noise and more music, CDT ensures the digital signal extraction is exceptionally precise.

ACCURACY FOR THE BENEFIT OF THE ENTHUSIAST

A temperature-compensated crystal oscillator controls the master clock. This enables the digital only output to provide incredibly low digital distortion (also referred to as jitter). This low jitter output offers superior performance when compared to like-for-like players.

EXCELLENCE IN ISOLATION

The LEAK CDT shields the CD mechanism from electrical interference, thus ensuring purity of signal. Such incremental benefits further enhance the performance.

Technical Specifications

USB Memory Device Audio Format
Supports WAV, MP3, AAC, WMA format

USB Memory Device File System
Supports FAT12, FAT16 & FAT32 format

Output Level
500 +/- 50mVpp

Output Impedance
75ohms

CD Sampling Frequency
44.1kHz

USB Sampling Frequency
44.1kHz & 48KHz

Digital Output Interface
1 x Coaxial & 1 x Optical

Power Requirement
100-120V ~ 50/60Hz

Standby Power Consumption


Dimensions (W x H x D)
236 x 1415 x 283 mm







*This information has been obtained from Manufacturers website. We advise that Price, Features & Specifications are subject change without notice.

E & O E
