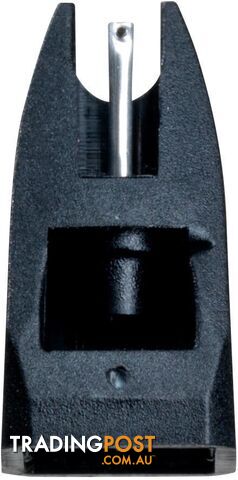

Ortofon Hi-Fi 30 Replacement Stylus

REPLACEMENT STYLUS FOR ORTOFON 30 SERIES CARTRIDGES


Technical data |
---|---
Frequency range | 20-29,000 Hz
Frequency response | 20-20,000 Hz + 2 / - 3 dB
Tracking ability at 315Hz at recommended tracking force | 90 µm
Compliance, dynamic, lateral | 25 µm/mN
Stylus type | Nude Fine LIne
Stylus tip radius | r/R 8/40 µm
Equivalent stylus tip mass | 0.3 mg
Tracking force range | 1.25-1.75 g (12.5-17.5 mN)
Tracking force (recommended) | 1.5 g (15 mN)
Tracking angle | 20°
Stylus colour | Black
Recommended for the following cartridges |

Super OM 30, OM 30, OMP 30, OMB 30, LM 30, Concorde 30, SME 30H, LM 30H,TM 30H
