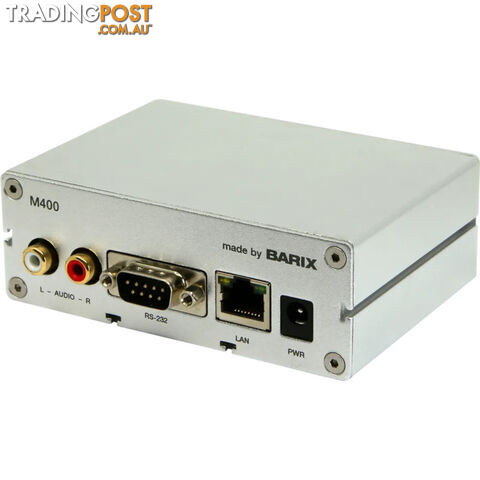

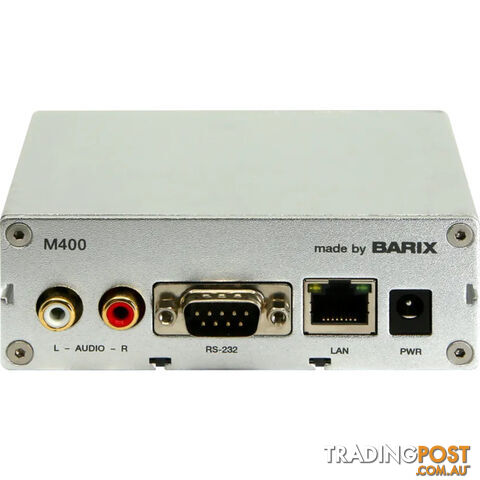

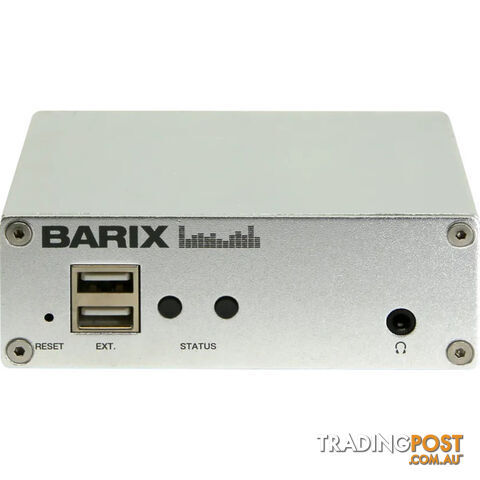

BAR20189240 BARIX INSTREAMER ICE

BARIX - INSTREAMER ICE ENCODER BAR20189240 TheInstreamer ICEencodes analog audio into MP3 or AAC for streaming to an Icecast or Shoutcast internet radio streaming service in the cloud. The Instreamer ICE also has an Icecast server built in and is able to feed up to 50 web radio listeners directly without the requirement to subscribe to an internet radio service provider. APPLICATIONS Live IP Audio Encoder for Streaming Applications Shoutcast/Icecast Source Encoder FEATURES MP3, AAC encoding Integrated Icecast server for up to 50 simultaneous web radio users Line level input (stereo) Supply voltage 5VDC   SPECIFICATIONS Power supply input External power adaptor, 100-240VAC, 5W Male connector: 5,5 x 2,1 mm 1 Ethernet interfaces RJ45 10/100 auto detect, IPv4, IPv6 TCP/IP, RTP, UDP, ICMP, DHCP, SNMP Audio input Stereo RCA connectors (Cinch connectors) Headphone output Female Jack 3.5 mm USB Double USB connector type A female LED Two LEDs with red/green/orange status Formats Audio Formats     PCM 16bit/48kHz/stereo   MP3 AAC         RS232 For future purposes   User Interface Web interface for control, status andconfiguration HW reset button HW/SW environment Barix IPAM400 (1.29 Ghz Quad-Core Cortex A7 processor) Linux Yocto with dual boot recovery and remote firmware update capability Mechanical Aluminum case, 250g, Dimensions (W x H x D) 108x38x78.7mm (4.25x1.5x3.1 inch) MTBF in examination   Â
