HDC6ECO HDMI OVER SINGLE CAT6 EXTENDER FTP CAT5E CAT6 UPTO 50M

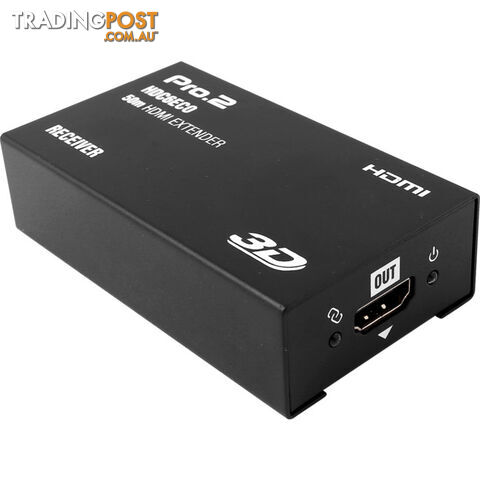

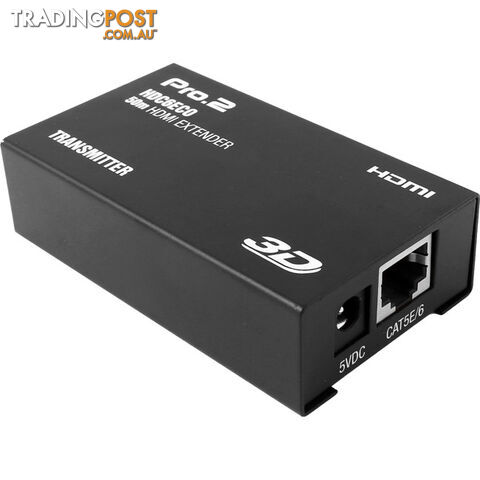

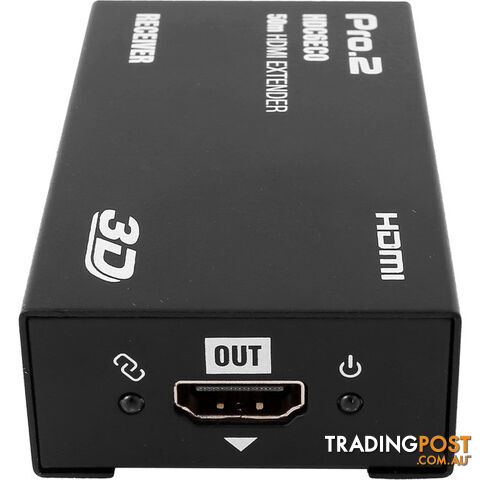

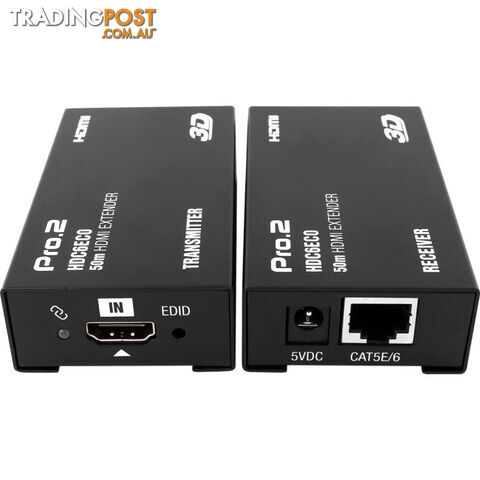

SOLID/FTP CAT5/6 CABLE REQUIRED FOR BEST RESULTS If you are running a cable 15 metres or more, make sure you use a SOLID CAT5/6 cable. This product may not workwith standard stranded ethernet cable. See related items forcabling that will work this product. 60m distance has been tested fine on F/UTP solid cat6 cable. FYI: Most of the pre-made cat5/6 leads on the market are stranded cable not solid. FEATURES Each set includes one transmitter and one receiver Easy installation, no need to do extra setting Transmit HDMI signal over 50m via single Cat5e/6 without signal loss The CAT5e/6 follows standard of IEEE-568B Support high definition resolution up to Full HD 1080p Support Dolby True-HD, DTS-HD Master audio EDID reading and saving from display Bandwidth can be up to 6.75 Gbps Deep colour up to 24 bit 3D compatible 2x DC 5V 1A power supply (included) 4K/2K incompatible Got the right cable? Please note: IEEE-568B standard cables are recommended for this kit. WIRING DIAGRAM SPECIFICATIONS Operating Temperature Range −5 to 35°C Operating Humidity Range 5 to 90%RH (No Condensation) Input Video Signal 0.5-1.0 Volts P-P Input DDC Signal 5 volts p-p(TTL) Support Video Format DTV/HDTV 480i/576i/480P/576P/720P/1080i/1080P 3D video Video Output HDMI ,HDCP Support Audio Format DTS-HD Master Audio Dolby True-HD etc. Transmission Distance 1080P 8-bit 50m (Maximum) over single CAT5E/6 /24AWG/Solid Power consumption 5 watts (Maximum) Dimension (LxWxH) 83x48x25mm Net Weight 250g (Pair) HDC6ECO User Manual PDF file Product Sell Sheet PDF file Weight: 0.5680 kg Barcode Number: 9328202018540
