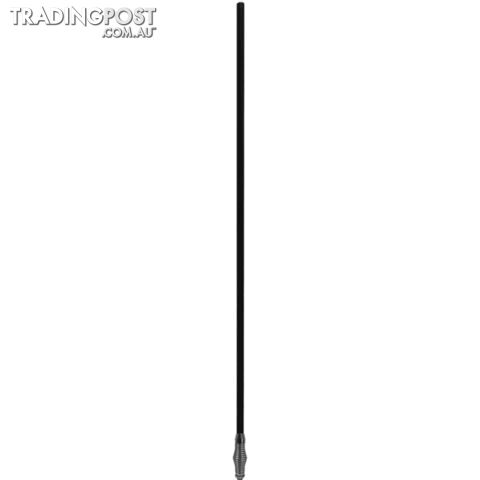

024579B 5G CELLULAR HI GAIN ANTENNA 7.5DBI

OVERVIEW 024579B 5G CELLULAR HI GAIN ANTENNA 7.5DBI The 024579B antenna is multi-band 5G ready cellular antenna intended for use in frequency bands 690 – 960 MHz, 1710 – 2700 MHz and 3500 – 3700 MHz. The 024579B antenna does away with the need for three separate antennas whilst maintaining high gain across the band 690-960 MHz. It comes with an N socket termination. The antenna is light weight, fitted to a stainless-steel stud, in a black radome. Features: Multi-Band performance Easy to install Fiberglass and thick-walled radome Light weight Plated heavy duty barrel stainless steel spring Designed and manufactured in Australia SPECS Frequency: 690 – 960 MHz Tuned Bandwidth 270 MHz 1710 – 2700 MHz Tuned Bandwidth 990 MHz 3500 – 3700 MHz Tuned Bandwidth 200 MHz Gain: 7.5 dBi (690 – 960 MHz) 3 dBi (1710 – 2700 MHz) 3 dBi (3500 – 3700 MHz) Impedance 50 Ω Operating VSWR
