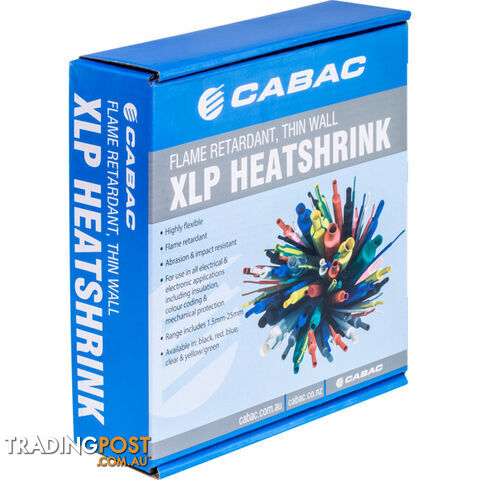

HS25.4BLU-5M 25.4MM X 5M HEAT SHRINK BOX BLUE

HEATSHRINK THIN WALL 25.4MM BLUE 5M BOX Flame retardant tubing made from Electron Beam Cross Linked Polyolefin Operating temperature -75 to 135 degrees Celsius Resistant to common fluids, solvents and abrasion UV resistant The CABAC XLP range of thin wall heat shrink tubing is used to insulate, protect and colour code conductors in a range of applications related to the electrical and associated industries. This general-purpose heat shrink provides electrical and mechanical protection, while also defending against environmental factors such as common fluids and/or solvents. Our blue thin wall heat shrink sleeving is flexible, flame retardant, and resistant to impact, abrasion and UV radiation. The XLP range of heat shrink tubing is made from polyolefin that has been cross-linked using high-energy electron beam technology. Upon the application of heat, the tubing will shrink down to approximately 50% of its pre-shrink diameter to deliver tight-fitting electrical and environmental insulation. To shrink our heat shrink tubing, we recommend the use of a CABAC heat gun (Part No. HG2232 or HG2233). CABAC blue polyolefin heat shrink tubing is UL certified and complies with a number of international standards, including ASTM D2671. DIMENSIONS Pre-shrink diameter: 25.4mm After-shrink diameter: 12.7mm Recovered wall thickness: 0.87mm Length: 5m box XLP tubing is available in a wide range of colours and sizes from 1.5mm to 125mm. The product datasheet includes a selection chart for your reference, see Resources. TECHNICAL DATA Compliant Standards: UL224 VW1 File No. E366157, ASTM D2671 Continuous Operating Temp: -75 to 135 degrees Celsius Shrinkage Temp: > 105 degrees Celsius Longitudinal Shrinkage
