CAP424 4X 240W - 100V QUAD POWER AMP AUDAC

AUDAC CAP424 QUAD-CHANNEL POWER AMPLIFIER 4 X 240W - 100V

The CAP Series are professional 100V multi-channel power amplifiers, containing various models with different channels and different output power configuration.

The CAP424 is a four channel version with an output power240 Watt per channel.

This way, a flexible solution is created for multi-zone audio distribution systems with four zones.

They are designed as no-nonsense amplifiers with only thenecessary controls and connections which creates great simplicity in use and installation.

A high efficiency and reliability of the devices is achieved by using switching power supplies in combination with Class-D amplifier technology.

A temperature controlled FAN constantly keeps all parts within the right operation range, while avoiding excessive buzz.

A built-in multipurpose protection circuit protects against DC malfunction, Short circuit, overheating, overloadand limits the signal when necessary.

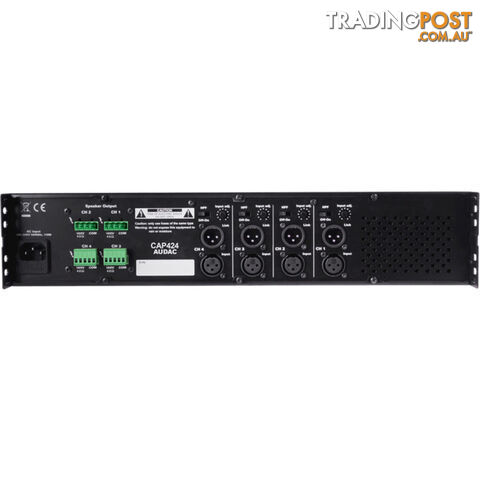

The input connections are performed using balanced XLR connectors and Link output connectors are provided for link through to other amplifiers.

Besides, a high-pass filter switch (400 Hz) and a gain adjustment potentiometer are provided for each channel.

The output connections are performed using reliable terminal block connectors and this all is housed into a solid constructed, double rack space (2 HE) 19” rack mounting housing.



KEY FEATURES
Operation indicator LED's
Class D amplifier technology
Advanced protection circuitry
Terminal block output connections (100V)
XLR input & linktrough connections
Input gain control potentiometer
High pass filter switch




SYSTEM SPECIFICATIONS
RMS Power 4 x 240 W
Signal / Noise > 100 dB
THD N (@ 1 kHz)
Crosstalk (@ 1 kHz)
Technology Class-D
Common mode rejection ratio 70 dB
Protection DC Short circuit
Over heating
Over load
Signal limiting
Cooling Temperature controlled FAN
Operating temperature 0° ~ 40° @ 95% Humidity
Frequency Response (± 3 dB) 50 Hz - 22 kHz
Power Supply Switching mode
Source 230 ~ 240 V AC / 50 Hz
Inputs Sensitivity (1W/1m) -0.5 dB ~ 10.5 dB
Impedance 10 k? balanced
Connector XLR female with Male Linkthrough
Outputs Voltage / Impedance 100 V / 42 ?
Connector 4-pin Euro Terminal Block (Pitch - 5.08 mm)
PRODUCT FEATURES
Dimensions 482 x 88 x 420 mm (W x H x D)
Weight 8.350 kg
Mounting 19”
Unit height 2 HE
Construction Steel
Colours Black
Accessories Included 4 x 4-pin Euro Terminal Block outputs connector
Optional CPE100 Rack mount handles



Barcode Number: 5414795031166
