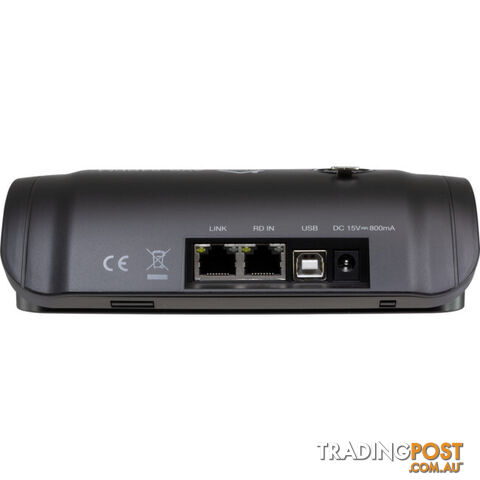

RPM600 REMOTE PAGING MICROPHONE FOR MATRIX A6 AVS64RPM

FEATURES Up to 4 Remote paging microphones can be configured for each RD Port Built-in 16M Flash to save voice messages such as various alarms, tips sounds, and so on With the RPM-600EX, extends to an additional 12-zone address-selection microphone. Up to 6 pcs of the RPM600 can be used to control up to 96 zones Customize the functionaries of the zone selection button such as voice playback etc.  Indication label holder General fault indicator and MIC status and Emergency indicator USB port to update the voice message SPECIFICATIONS Model RPM-600 Power 24V DC ( Operation range: 15-40V DC Powered by MATRIX ) Rated current 120mA (remote emergency MIC), 250mA (Connected to 3 PCS of zone-selection expander) Frequency Response 200Hz-15KHz THD 1% SNR 55dB Volume Control Microphone volume control, Voice volume control MAX cable connection distance Cat-5e 150m in total length The number of zone selection expander connected 3 PCS Operation Temperature -5°C~45°C Dimension (L x W x H) 243 x 170 x 53 mm (9.57 " x 6,70 " x 2.09 " ) Weight 0.66kg(0.15lbs)   MATRIX A6 MANUAL PDF file MATRIX A6 PRO EDITOR PC SOFTWARE Compressed file Barcode Number: 4712646007249
