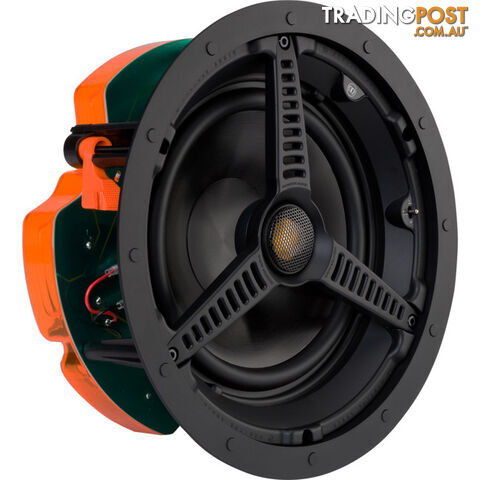

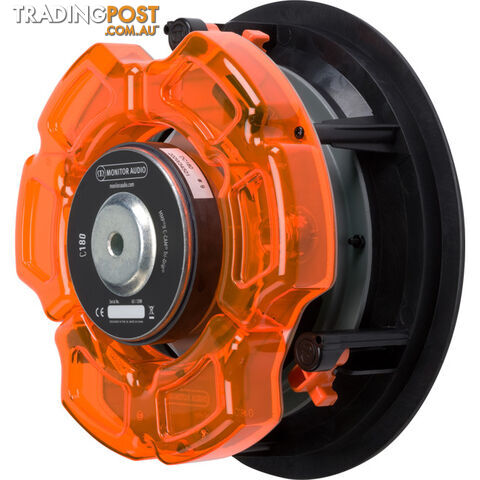

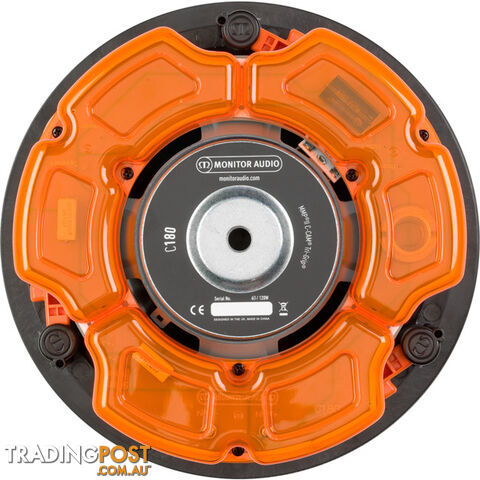

C180 8" 2-WAY IN-CEILING SPEAKER MMP11 BASS -C-CAM TWEETER

C180- 8" 2 WAY IN-CEILING SPEAKER

Incorporating an 8-inchMMPIIbass driver with Monitor Audio’s signatureC-CAMGold Dome tweeterto provide high performance sound, ease-of-drive, and wide frequency response and dispersion.

Optimum imaging and set-up are established via a pivotingtweeter and high-frequency ( 3 dB / 0 dB /-3 dB) level adjustment.

Optionalsquare grillecan be usedwith this model.



Key Features

8" C-CAM driver
C-CAM Gold Dome Tweeter
2-Way Design

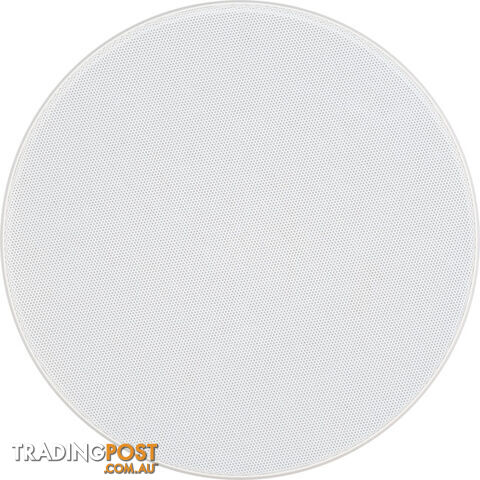

Paintable Grille
Pivoting Tweeter
Adjustable HF level
Optional Square grille

SPECIFICATIONS



Frequency response 50 Hz – 25 kHz


Nominal Impedance

6 ohms
Sensitivity (1W@1M) 90 db
Maximum SPL 111.6 dBA
Power Handling (RMS) 120 Watt
Recommended Amplifier Requirements 30 - 120 Watts
Drive Unit Complement

8"MMP IIcone bass driver
1"C-CAMpivotingGold Dome tweeter


Adjustment Controls HF Level Switch ( 3 dB / 0 dB / -3 dB)
Overall Diameter (Including Grille) 285 mm (111/4")
Mounting Depth 122 mm (413/16")
Cut-Out Diameter 247 mm (93/4")
Fixing Type 3 position Tri-Grip dog fixings
Connection Gold plated ‘push’ type terminals
Grille attachment Magnetic - (optional square grille- outer dimmensions 285 x 285 mm (111/4")
Construction Material Mineral filled ABS, RoHS compliant
Weight 2.72 kg (6 lb)
Pre- Construction bracket CB8Pre-Construction Bracket(Green)
Back Box

CCBOX-R / CMBOX-R

Custom install product guide PDF file
CI Overview PDF file


Weight: 3.80 kg
Barcode Number: 5060028971459
