TVM5645W ELITE SERIES LARGE 40"-77" FULL MOTION WALL MOUNT MAX 100KG - WHITE

VOGEL'S WHITE TVM 5645W FULL-MOTION TV WALL MOUNT
KEY FEATURES

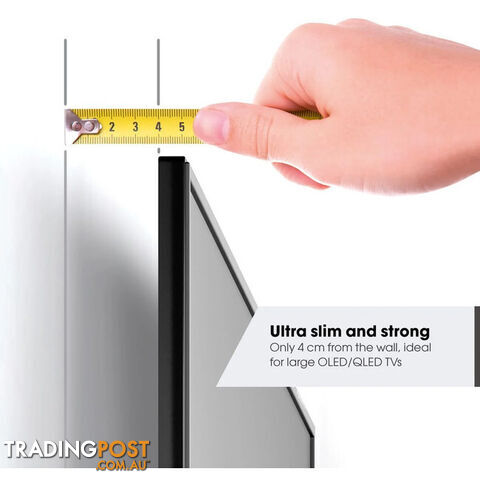

Ultra slim and strong - Only 4 cm from the wall, ideal for large OLED/QLED TVs

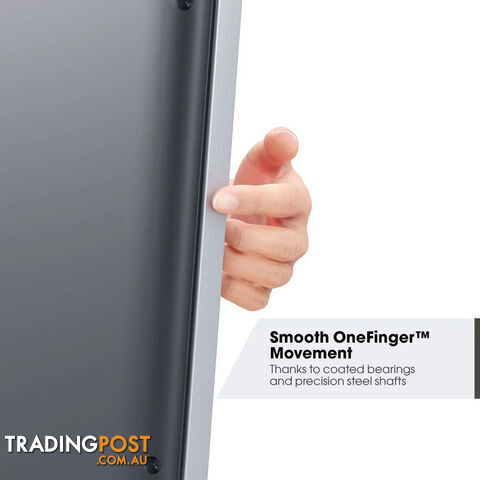

Smooth OneFinger™ Movement - Thanks to coated bearings and precision steel shafts
Perfectly level installation - Free spirit level included

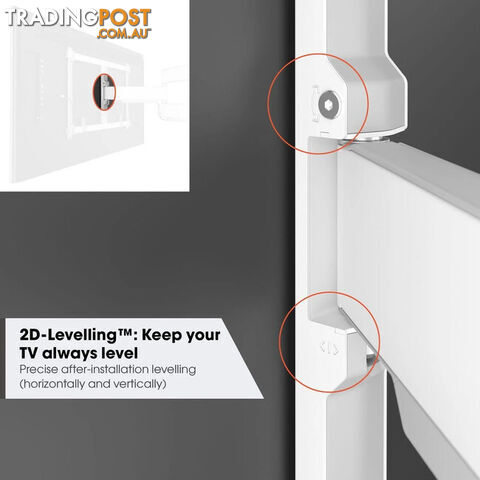

2D-Levelling: Keep your TV always level - Precise after-installation leveling (horizontally and vertically)
Protective TV patches - Protect the rear of your TV with soft protective patches

Full-motion, ultra-slim TV wall mount for high-end TVs from 40 to 77 inches
The ELITE Full-Motion TV wall mount combines minimalistic design with great performance. The wall mount is not only ultra-slim, but also ultra-strong and can be turned up to 180°. In short, the ultimate wall mount for large high-end TVs, such as OLED and QLED TVs. The TV wall mount is suitable for displays from 40 to 77 inches in size and weighing up to 45 kg. In the starting position, your TV is mounted just 4 cm from the wall. Available in the colours White and Platinum Grey.

Watch TV comfortably from any angle

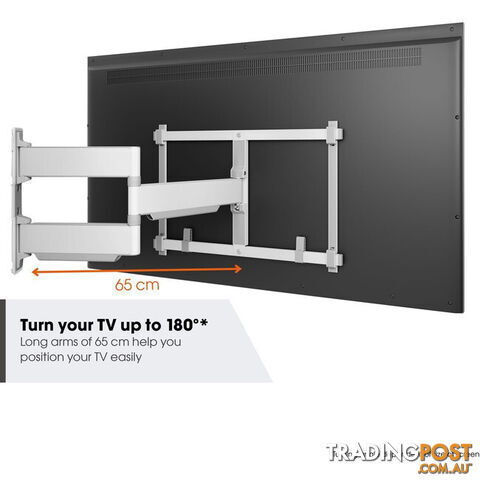

The ELITE Full-Motion TV wall mount has extra long support arms of 65 cm. This makes it possible to turn your TV up to 90° to the left and right, depending on your display size, enabling you to enjoy your TV optimally from any corner in the room. Turning your TV is extremely smooth, thanks to OneFinger™ Movement, you can move the display to the desired viewing angle with just one finger. Because it's best not to tilt thin, fragile displays, the tilt function has been omitted.

Refined perfection
ELITE Full-Motion TV wall mounts excel in perfection. The TV wall mount features 2D Leveling™, making it easy to mount your TV perfectly straight, both horizontally and vertically, even after installation. The cables run – out of sight – through the support arms thanks to the unique Cable Inlay System (CIS®). You can neatly conceal the cables at the back of your TV using the special cable holders. All technical details of the TV wall mount are nicely hidden behind elegant cover plates.

Safety guaranteed
ELITE Full-Motion TV wall mounts meet the most stringent safety requirements. Each TV wall mount is T V certified and tested to three times its maximum weight capacity.

Easy to install
The ELITE Full-Motion TV wall mount is easy to install. It comes with a Quick Install Guide, which explains everything clearly. You'll find even more help online, including a detailed manual and the installation video. A spirit level, drilling template, screws and fischer® DuoPower plugs are included. With Vogel's free DrillRight™ AR app, you can easily mark the first drill hole. To protect the back of your TV during mounting, soft wall mount patches are included.



SPECIFICATIONS
EAN Single box
8712285355042

Colour
White

Min. screen size (inch)
40

Max. screen size (inch)
77

Max. weight load (kg)
45

Maximum rotation
Full motion (up to 180°)

Hole Pattern ( Vesa )



100 mm x 100 mm, 100 mm x 200 mm, 200 mm x 100 mm, 200 mm x 200 mm, 200 mm x 300 mm, 300 mm x 200 mm, 300 mm x 300 mm, 400 mm x 200 mm, 400 mm x 300 mm, 400 mm x 400 mm, 500 mm x 200 mm, 500 mm x 300 mm, 500 mm x 400 mm, 600 mm x 200 mm, 600 mm x 300 mm, 600 mm x 400 mm



Min. distance to the wall (mm)
40

Max. distance to the wall (mm)
652

Min. distance to the wall (inch)
1.57

Min. distance to the wall (inch)
3

What's in the box
Wall mount, Wall mounting kit with fischer® Duo Power plugs, TV fasteners kit, Spirit level, Quick Installation Guide, DrillRight™ AR app, Drilling template

Product series
Elite

Guarantee
15 years





Weight: 8.03 kg
Barcode Number: 8712285355042
