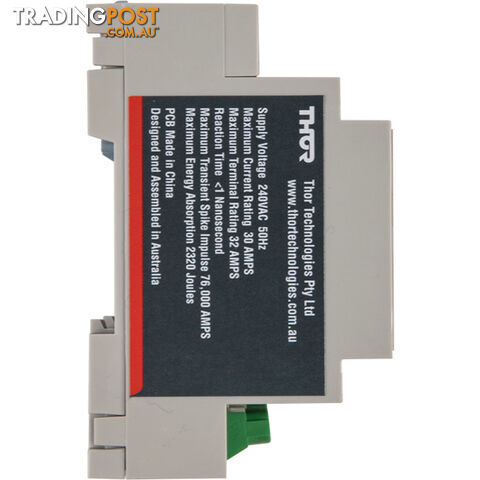

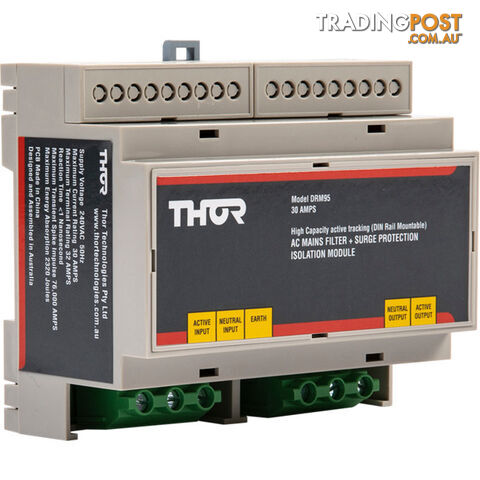

DRM95-30A HARD WIRED DIN RAIL MOUNT- 30A THOR ACTIVE FILTER

THOR DRM95-30A HIGH CAPACITY AC MAINS FILTERED PROTECTION
THE ULTIMATE PROTECTION

SmartBoard Smart Series with unique Dynamic Active Tracking™ is the most comprehensive and advance solution to protect your electronic equipment.

Improving flickering from LED or reducing re-programming from PLC and specialised lighting systems like CBUS/Dynaliteto stopping spikes/surges or electrical noise contaminating whole circuits.

DRM95 is relied on in these and many more similar type applications.




The Thor SmartBrain not only protects from surges, it also filters and cleans electrical frequency noise to give you unbeatable sound and video quality.

Enjoy a truer AV experience with better picture quality and purer sound.

Can also improve computer gaming speeds and fix internet dropouts.

KEY FEATURES
2320 Joules Power protection
Max EMI / RFI noise filtration
1 Nano second reaction speed
Dynamic Active tracking filter
Spike surge protection
30 amp
Needs Electrician to install
Maunufactured in Australia
6 year warranty replacement



TECHNICAL SMARTS
Product Dimensions: 105mm(W) x 96mm(H) x 60mm(D)
Supply voltage 240/V AC 50Hz
Maximum current rating 30amps/7200 W (VA)
Clamping Voltage 275VAC
Reaction speed less than 1 nanosecond
Maximum transient spike impulse current (Amps) 76,000 amps
Maximum Energy Dissipation (Joules) 2320 Joules
EMI/RFI Noise Reduction Filter Types - Dynamic Active Tracking (SmartBrain Active Filter)
Protected AC Incorporating 32 separate protection components
Earth Leakage Range Less than 1 milli amp
Operating Conditions Indoor/AC Mains
Operating Temperatures -10C/ 60C
Protection Modes on all 3 conductors Active/Neutral/Earth
Enclosure - Wide din rail 105mm
Model No. DRM95 30A



INSIDE THE BRAIN

SmartBrain has a premium filter technology called DynamicActive Tracking.

This unique filter has the best chance of "cleaning" electrical noise because it shields around 40% more frequencies when compared to other filters.

It is an Active filter and can "clean" unwanted frequencies on both the upward curve and the downward curve of a sine wave (power).

Most other filters only work at the crest of the wave andtherefore miss a huge section of these unwanted frequencies that can generate noise on sensitive electronic devices.



PROTECTS
Whole circuit filtered protection
LED lighting systems
CBUS and Dynalite systems
AV and sound circuits
Air conditioners
PCB or other type sensitive electronics














Thor DRM95-30A Brochure PDF file


Thor DRM95-20A/30A Video

Video not loading? Watch it over at YouTube!


Weight: 0.3300 kg
