USW-FLEX-MINI UNIFI 5 PORT GIGA SWITCH L2 POWERED BY POE AND USB-C

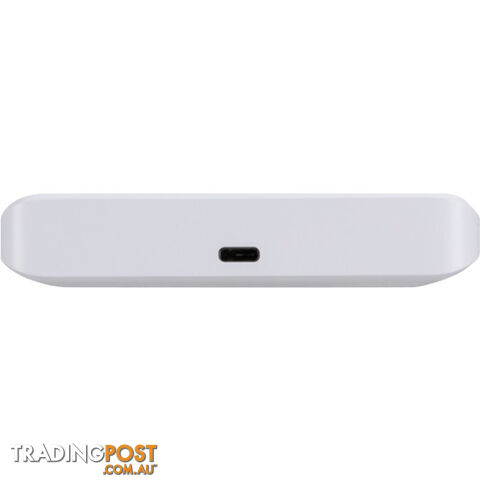

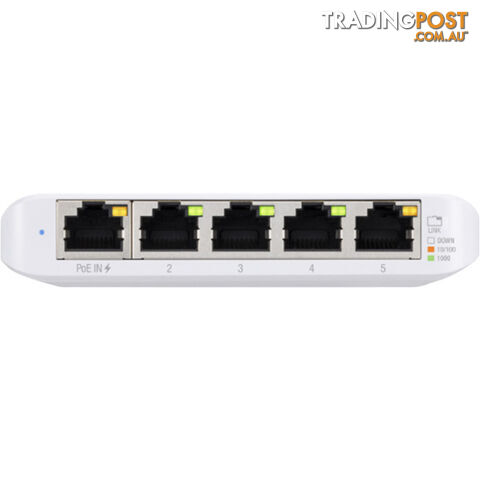

USW FLEX MINI 5-PORT MANAGED GIGABIT POE SWITCH Build and expand your network with the UniFi® Switch,part of the Ubiquiti Networks® UniFi Enterprise System. The UniFi Switch, model USW-Flex-Mini, is a smart managed Gigabit switch. It offers 5 RJ45 Ethernet ports, providing 1Gigabit links to your devices. The 5-Port managed Gigabit Ethernet Switch can be powered by 802.3af/at PoE switch, PoEAdapter (Model USW-FLEX-MINI-NPS), or 5V, 1A USB-C power adapter (Model USW-FLEX-MINI-PS). Power Options Power up with USB Type-C power adapter or with802.3af/at PoE Adapter(Sold Separately), or 802.3af/at PoE switch via Ethernet in port 1. SPECIFICATIONS USW-Flex-Mini Dimensions 107.16 x 70.15 x 21.17 mm (4.22 x 2.76 x 0.83") Weight 150 g (5.29 oz) Networking Interfaces (5) 10/100/1000 Mbps RJ45 Ports PoE In Interface 802.3af/at PoE (Pins 1, 2 ; 3, 6-) Max. Power Consumption 2.5W Power Method USB Type C, 5V 802.3af/at PoE (44 - 57VDC, 0.05 - 0.04A) Power Supply 5V, 1A Power Adapter* Voltage Range USB Type C 4.7 - 5.2VDC 802.3af/at PoE 44 - 57VDC LEDs System Status RJ45 Data Ports Link/Speed/Activity ESD/EMP Protection ± 16kV Air, ± 12kV Contact Operating Temperature -5 to 45°C (23 to 113° F) Operating Humidity 10 to 90% Noncondensing Certifications CE, FCC, IC * Included only in the single-pack of the USW-Flex-Mini. Datasheet PDF file Quick Guide PDF file Weight: 0.2000 kg Barcode Number: 817882029810
