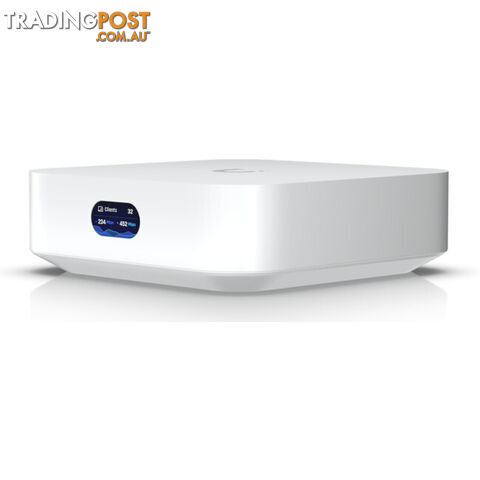

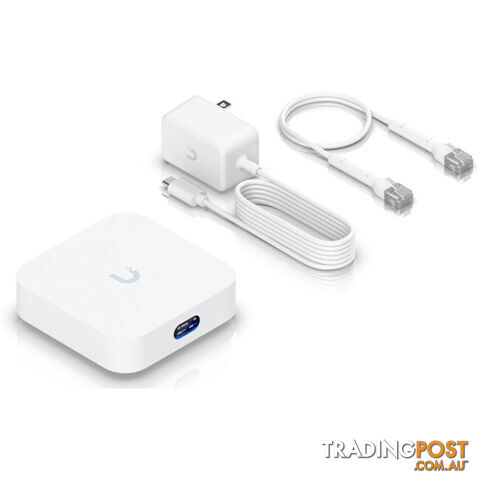

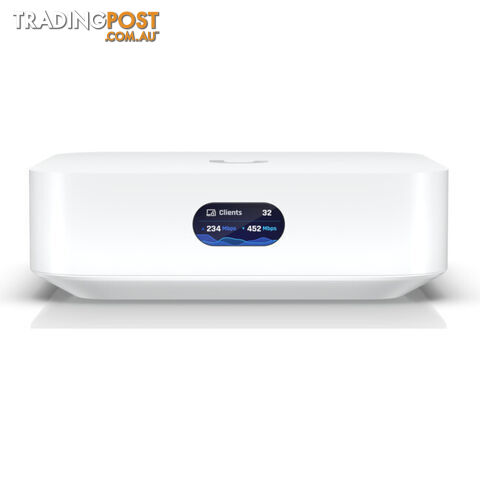

UNIFI EXPRESS UNIFI CLOUD GATEWAY WIFI6 ACCESS POINT

UBIQUITI UNIFI EXPRESS, UNIFI CLOUD GATEWAY, WIFI 6 ACCESS POINT, 140 M SINGLE-UNIT COVERAGE, 1 GBE WAN, MANAGE 5X UNIFI DEVICE Powerfully compact UniFi Cloud Gateway and WiFi 6 access point that runs UniFi Network. Powers an entire network or simply meshes as an access point. Built-in WiF6 (2x2 MIMO) Manage up to 4x additional UniFi Devices 140 m (1,500 ft ) single-unit coverage 60 connected WiFi devices (1) GbE RJ45 WAN port (1) GbE RJ45 LAN port to extend network 0.96" LCM status display Mechanical Dimensions 98 x 98 x 30 mm (3.6 x 3.6 x 1.2") Weight 302 g (10.7 oz) Enclosure material Polycarbonate Hardware Management interface Ethernet Bluetooth Networking interface LAN: (1) GbE RJ45 port WAN: (1) GbE RJ45 port Power method USB type C (5V DC/3A) Max. power consumption 10W Max. TX power 2.4 GHz 5 GHz 22 dBm 25 dBm MIMO 2.4 GHz 5 GHz 2 x 2 (DL/UL MU-MIMO) 2 x 2 (DL/UL MU-MIMO) Throughput rate 2.4 GHz 5 GHz 573.5 Mbps 2.4 Gbps Antenna gain 2.4 GHz 5 GHz 4 dBi 5.15 dBi Antennas (2) Internal 2.4G/5G WiFi dual-band antenna (1) Internal 2.4G single-band BT antenna LCM display 0.96" status display Button Factory reset Ambient operating temperature -10 to 45° C (14 to 113° F) Ambient operating humidity 5 to 95% noncondensing Certifications CE, FCC, IC Gateway Features Performance Internet quality and outage reporting Next-generation security Application-aware firewall rules Content, country, domain, and ad filtering VLAN/subnet-based traffic segmentation Full stateful firewall Advanced networking License-free SD-WAN WireGuard, L2TP and OpenVPN server OpenVPN client OpenVPN and IPsec site-to-site VPN One-click Teleport VPN Policy-based WAN and VPN routing DHCP relay Customizable DHCP server IGMP proxy IPv6 ISP support Software WiFi standards 802.11a/b/g/n/ac/ax Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) BSSID Console mode: 3 per band Standard AP: 8 per band VLAN 802.1Q Advanced QoS Per-user rate limiting Guest traffic isolation Supported Concurrent clients 50 * *Performance may be degraded with advanced gateway features (e.g., Traffic Identification). Supported Data Rates 802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b 1, 2, 5.5, 11 Mbps 802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11n (WiFi 4) 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) 802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) 802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)   Weight: 1.02 kg Barcode Number: 810084691960
