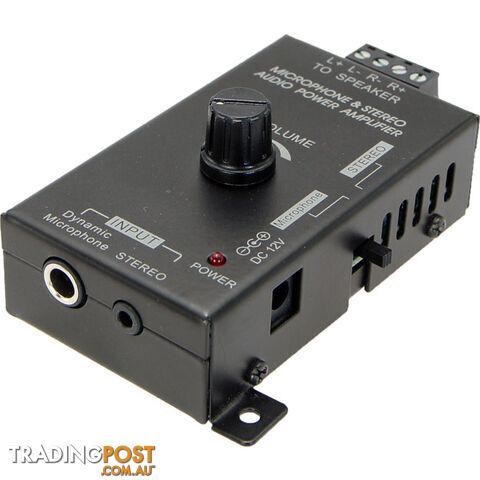

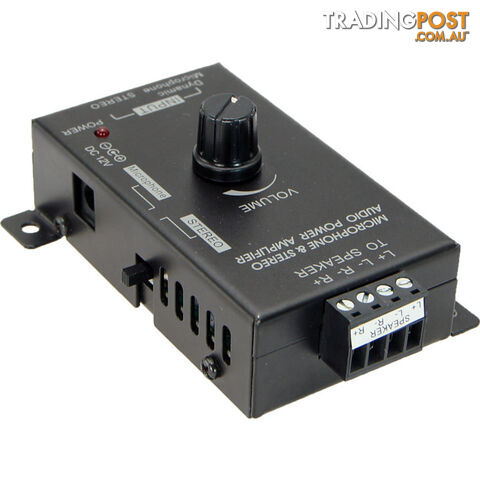

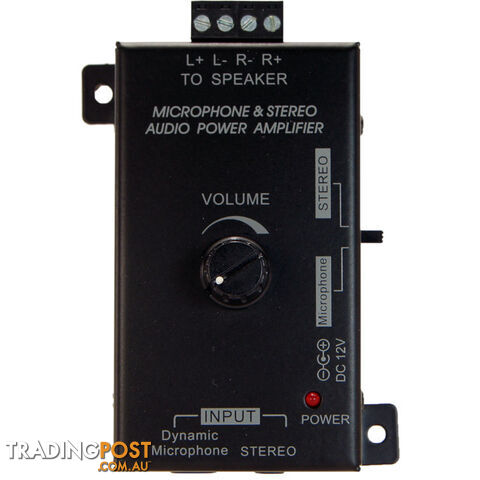

PRO1328 STEREO AUDIO POWER AMPLIFIER MICROPHONE AND STEREO CLASS D

FEATURES Use the PRO1328 to power in-ceiling speakers with the audio output from any source device such as computers, DVD players, TVs and even Microphones. Alternatively the PRO1328is perfect for shop display installations, where basic audioamplification and compact size is required. If your Flat Screen TV's built-in speaker output is belowpar, the PRO1328 can provide an elegant solution to add you own passive speakers for clearer and more powerful listening! With the abilty to switch from line-level to dynamic microphone input, the PRO1328 can be used to give your shop displays and demonstrations more reach! Ideal for use with: Computers DVD players TV's Microphones FEATURES Small size and compact Also suitable for wall-mounting Works with 4Ω, 6Ω and 8Ω speakers To speaker screw terminals handle wire sizes from 24 to 12 gauge SPECIFICATIONS Inputs: Dynamic microphone or stereo audio line level Microphone pre-Amplifier gain: 40dB Power Amplifier Type: Stereo Class-D Output power: 15W(rms) per channel (@ RL=4 ohm) THD N: 0.06 % (@ RL=8 ohm, f = 1 kHz) Minimum Load Resistance: 4Ω Includes Speaker Protection circuit. Power Source: 12 VDC / 2A (included) Size (LxWxH): 92.6mm x 73.4 mm x 26.6mm Net Weight (Unit only): 160 g DOWNLOADS pdf; 350kB PRO1328 PRO1328WP Sell Sheet VIDEO Pro2 Class D Mini Amps - Range Overview May 2020 Video not loading? Watch it over at YouTube! Weight: 0.3860 kg Barcode Number: 9328202015389
