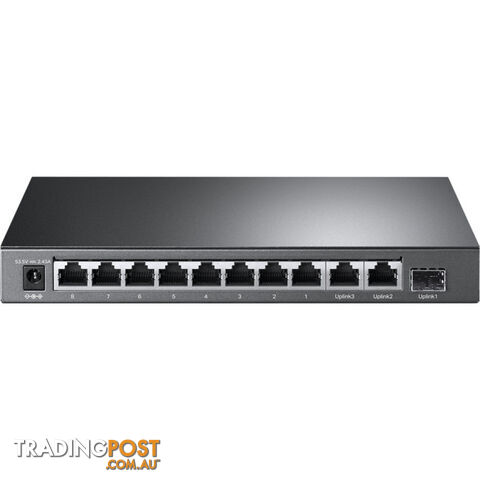

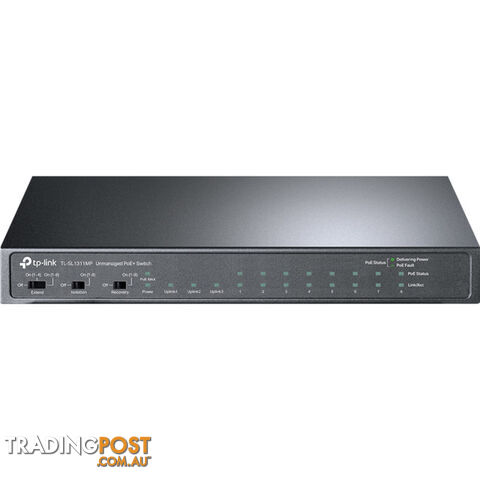

TLSL1311MP 11 PORT POE SWITCH WITH 8 POE+ 124W METAL

FEATURES 8-PORT 10/100MBPS 3-PORT GIGABIT DESKTOPSWITCH WITH 8-PORT POE Professional 11-Port Switch with 8-Port PoE (124 W Budget) for Numerous Applications Compliance with the 802.3af/at PoE standard supports up to 30 W on each PoE port. The total 124 W PoE power budget* for the 8× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories,and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more. Ideal for IP Surveillance ?Up to 250 m Transmissions With extend mode, the PoE transmission distance reaches up to 250 m*?perfect for IP Camera deployment in large areas. *The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to powerconsumption of PoE-powered devices or the cable quality and type. One-Click Traffic Separation With one click, Isolation Mode easily divides traffic for ports 1–8 to avoid snooping and tampering. This enables the switch to isolate broadcast storm, improving LAN security and data transmission. System Self-Healing with PoE Auto Recovery The switch automatically detects and reboots the PDdevices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without need for manual monitoring and restart. Intelligent Power Management When total power consumption exceeds 66 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged. Durable Metal Casing The interior components of TL-SL1311MP are protected by high-quality metal casing to ensure a long product life. Having passed anarray of stringent reliability tests, TL-SL1311MP delivers switching performance you can depend on. SPECIFICATIONS HARDWARE FEATURES Interface • 8× 10/100 Mbps 802.3af/atPoE Ports, 2× Gigabit RJ45Ports, 1× Gigabit SFP Port • AUTO Negotiation • AUTO MDI/MDIX Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum100m) • EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity Fanless Physical Security Lock Yes External Power Supply External Power Adapter (Output: 53.5VDC / 2.43A) Packet Forwarding Rate 5.6544 Mpps PoE Ports (RJ45) • Standard: 802.3 af/at compliant • PoE Ports: Ports 1–8 • Power Supply: 124 W Mac Address Table 2K Jumbo Frame 16 KB Switching Capacity 7.6 Gbps Dimensions ( W x D x H ) 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm) Max Power Consumption • 5.95 W (220/50 Hz. no PD connected) • 140.92 W (220/50 Hz. with 124 W PD connected) Max Heat Dissipation • 20.29 BTU/h (no PD connected) • 480.54 BTU/h (220/50 Hz. with 124 W PD connected) SOFTWARE FEATURES Transmission Method Store-And-Forward Advanced Functions • Compatible With IEEE 802.3af/atCompliant PDs • Extend Mode Button (Ports 1–4 and Ports1–8, Up to 250 m PoE power supply and data transmission) • Isolation Mode Button (Ports 1–8) • PoE Auto Recovery Button (Ports 1–8) • Mac Address Auto-Learning and Auto-Aging • IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode OTHERS Certification FCC, CE, RoHS Package Contents • TL-SL1311MP • Power Adapter • Installation Guide Environment • Operating Temperature: 0–40 °C (32–104 °F) • Storage Temperature: -40–70 °C (-40–158 °F) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing DOWNLOADS Assets Weight: 1.56 kg Barcode Number: 6935364006259
