EAP650-OUTDOOR AX3000 INDOOR OUTDOOR WIFI 6 ACCESS POINT OMADA

Superior WiFi 6 Speeds:Delivers dual band speeds of up to 3 Gbps powered by the latest WiFi 6 technology.1
Higher Network Efficiency:Enjoy faster speeds on more devices with less lag with OFDMA and MU-MIMO.
160 MHz Bandwidth Channel:Double the data at peak transmission times on a single stream with HE160.2
Long-Range Coverage:Dedicated high-power amplifier and professional antennas with an IP67 weatherproof enclosure.

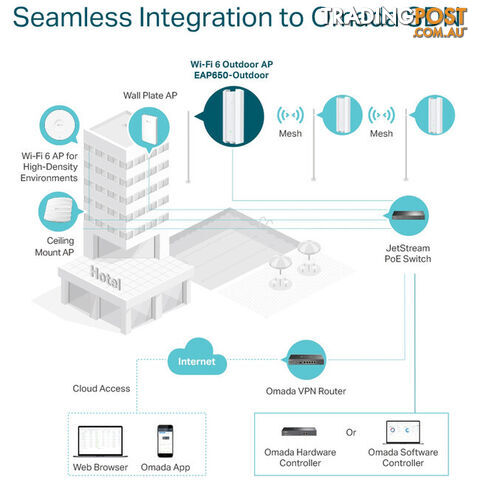

Omada Mesh Technology:Enables wireless connectivity between access points for extended range and flexible deployment.3
Stay Smooth with Seamless Roaming:Users can enjoy seamless streaming across the property with their devices switching effortlessly between access points.3
PoE Powered:Supports both 802.3at PoE and Passive PoE (adapter included) power supply for flexible installation.
Centralised Cloud Management:Omada SDN integration manages the whole network locally or from the cloud via web UI or the Omada app.
HARDWARE FEATURES

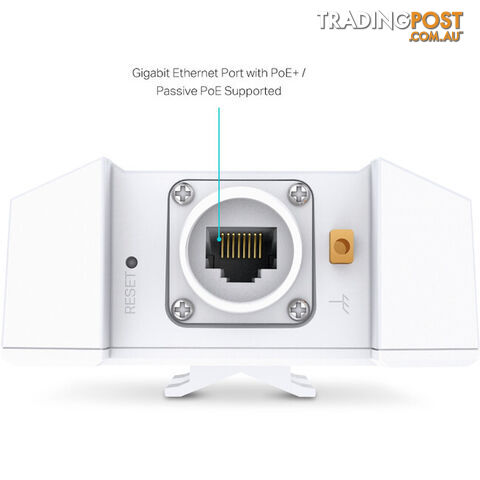

Interface 1× Gigabit Ethernet (RJ-45) Port (Support 802.3at PoE and Passive PoE)
Button Reset
Power Supply 802.3at PoE / 48V Passive PoE
Power Consumption 802.3at PoE / 48V Passive PoE
Dimensions ( W x D x H ) • 280.4×106.5×56.8 mm (without antenna & mounting kit)
Antenna • 2.4 GHz: 2× 4 dBi
• 5 GHz: 2× 5 dBi
Weatherproof Enclosure IP67
Mounting Pole/Wall Mounting (Kits included)
WIRELESS FEATURES
Wireless Standards IEEE 802.11ax/ac/n/g/b/a
Frequency 2.4 GHz, 5 GHz
Signal Rate • 802.11ax: 8 Mbps to 1201 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80)
• 802.11ac: 6.5 Mbps to 1083.3 Mbps (MCS0-MCS9, NSS = 1 to
2 VHT20/40/80)
• 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, HT20/40)
• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11b: 1, 2, 5.5, 11 Mbps
• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Transmit Power • CE:
• FCC:
Wireless Functions • 1024-QAM
• 4× Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS (WMM)
• MU-MIMO
• Omada Mesh3
• Seamless Roaming3
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
Wireless Security • Captive Portal Authentication3
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
MANAGEMENT
Omada App Yes
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access Yes, through
• Omada Cloud-Based Controller
• OC300
• OC200
• Omada Software Controller
Email Alerts Yes
Management MAC Access Control Yes
SNMP v1, v2c
System Logging Local/Remote Syslog Yes
SSH Yes
Web-based Management Yes
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller
OTHERS
Certification CE, FCC, RoHS
Package Contents • Access Point EAP650-Outdoor
• Passive PoE Adapter
• Power Cord
• Mounting Kits
• Installation Guide
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment • Operating Temperature: -30–70 °C (-22–158 °F)
• Storage Temperature: -40–70 °C (-40–158 °F)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing



Assets


Weight: 0.7850 kg
Barcode Number: 4897098683552
