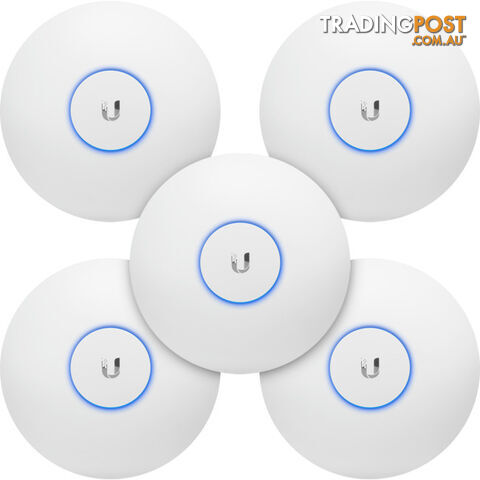

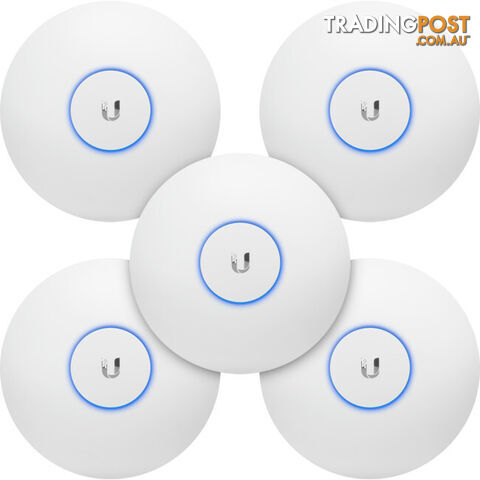

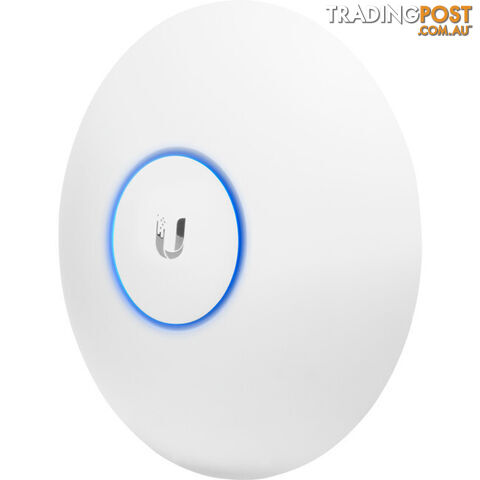

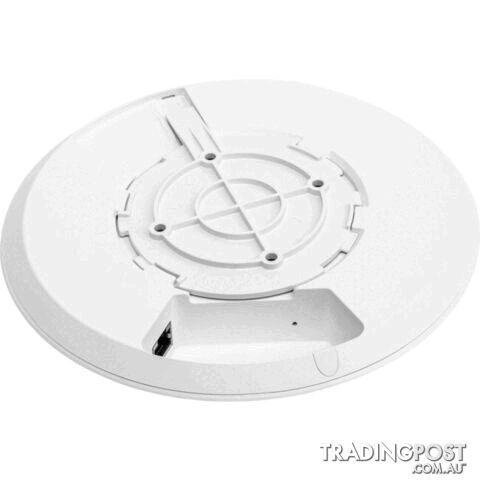

UAP-AC-LR5 UAP AC1300 ACCESS POINT 5PK UAP LONG RANGE

OVERVIEW INNOVATIVE ANTENNA DESIGN The innovative antenna design provides a long-range, symmetrical-link coverage area, and the antenna gain of the UniFi AC LR AP performs better than one-way, high transmit power does for connecting distant clients. DESIGNED FOR OPTIMAL RF PERFORMANCE The newly redesigned UniFi Controller optimizesRF performance: SCALABLE ENTERPRISE WI-FI MANAGEMENT The UniFi Controller v4 software is a powerful,enterprise wireless software engine ideal for high-density client deployments requiring low latency and high uptime performance. With its software-based capabilities, the UniFivirtual control plane allows for unlimited scalability underone centralized controller. Remotely access the UniFi Controller to upgrade deployed UniFi APs while in the field. SPECIFICATIONS Specifications Dimensions 175.7 x 175.7 x 43.2 mm (6.92 x 6.92 x 1.70") Weight 240 g (8.5 oz) With Mounting Kits 315 g (11.1 oz) Networking Interface (1) 10/100/1000 Ethernet Port Buttons Reset Antennas (1) Dual-Band Antenna, Tri-Polarity, 2.4 GHz: 3 dBi,5 GHz: 6 dBi Wi-Fi Standards 802.11 a/b/g/n/ac Power Method Passive Power over Ethernet (24V),(Pairs 4, 5 ; 7, 8Return) Power Supply 24V, 0.5A Gigabit PoE Adapter* Maximum Power Consumption 6.5W Maximum TX Power 2.4 GHz 24 dBm 5 GHz 22 dBm BSSID Up to Four per Radio Power Save Supported Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) Certifications CE, FCC, IC Mounting Wall/Ceiling (Kits Included) Operating Temperature -10 to 70°C (14 to 158° F) Operating Humidity 5 to 95% Noncondensing * Only the single-pack of the UAP-AC-LR includes a PoE adapter.   Advanced Traffic Management VLAN 802.1Q Advanced QoS Per-User Rate Limiting Guest Traffic Isolation Supported WMM Voice, Video, Best Effort, and Background Concurrent Clients 200 Supported Data Rates (Mbps) Standard Data Rates 802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11n 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40) 802.11ac 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) 802.11b 1, 2, 5.5, 11 Mbps 802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps FAQS Can I update the software on this product? Yes you can! However, you MUST uninstall any old software before trying to install updates. Find all the latest Ubiquiti software here. DOWNLOADS UniFi AC Product Range PDF file Weight: 2.36 kg Barcode Number: 810354025457
