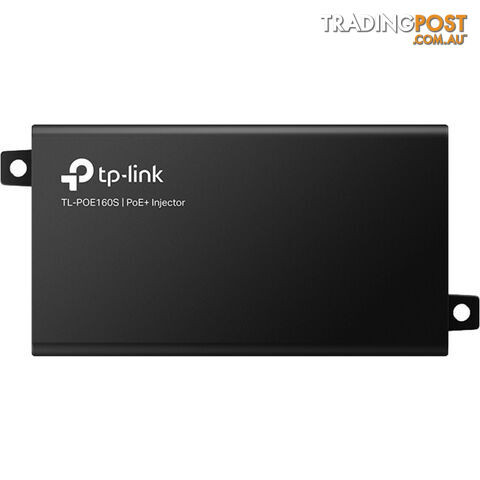

TLPOE160S POE+ LINE INJECTOR

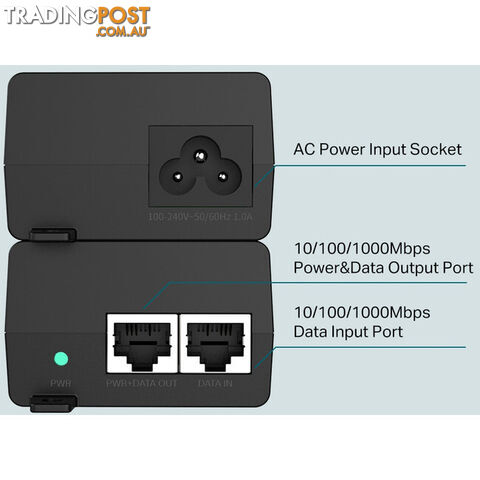

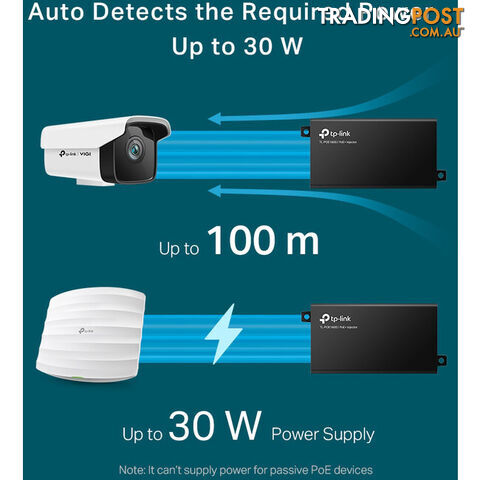

TP-LINK TL-POE160S POE INJECTOR, 2 GIGABIT PORTS, 802.3AF/AT, INTEGRATED POWER SUPPLY, WALL MOUNTABLE, PLUG & PLAY DESCRIPTION TP-Link TL-POE160S PoE Injector • 2 Gigabit ports ensure faster transmission • Complies with IEEE802.3af/at standards, supplies up to 30 W • Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable • Automatically determines and supplies the exact power to meet the device's need • Wall-mounting and desktop design accommodates most installation scenarios • Plug & Play installation, requires no configuration • Integrated power supply • 250V 10A Mains Power Supply Cable included NETWORK Standards and Protocols IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at GENERAL Certification FCC, CE, RoHS Environment Operating Temperature: 0°C to 40°C (32°F to 104°F) Storage Temperature: -40°C to 70°C (-40°F to 158°F) Operating Humidity: 10% to 90%RH non-condensing Storage Humidity: 5% to 90%RH non-condensing HARDWARE FEATURES Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) 100BASE-TX: UTP category 5, 5e cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) 1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m) Ports 1 10/100/1000Mbps RJ45 data-in port 1 10/100/1000Mbps RJ45 power data-out port 1 AC socket Power Consumption Input: 100-240 V, 50/60 Hz Output: Auto-determine the necessary power requirements (max. 30 W) Basic Function Auto-Sensing Algorithm enables providing power with 802.3af/at PD Auto-determine the necessary power requirements Wall-mounting and desktop installation supported Plug-and-Play LED Indicator ON: Supplying power normally OFF: No power supply Dimensions ( W x D x H ) 4.9*2.3*1.4 in (125*59.4*36.8 mm)   Assets Weight: 0.5280 kg Barcode Number: 6935364073084
