AWC280T2 SINGLE STEREO 8" ALL WEATHER CEILING SPEAKER

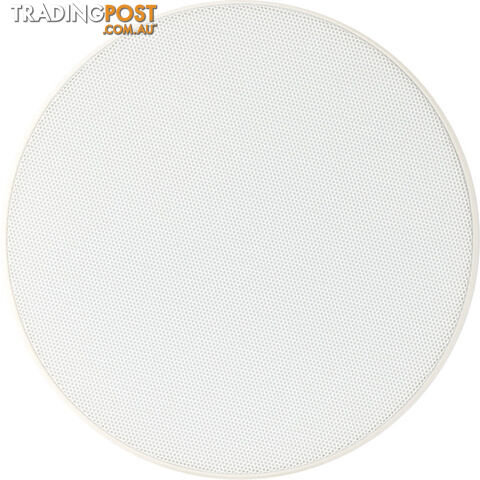

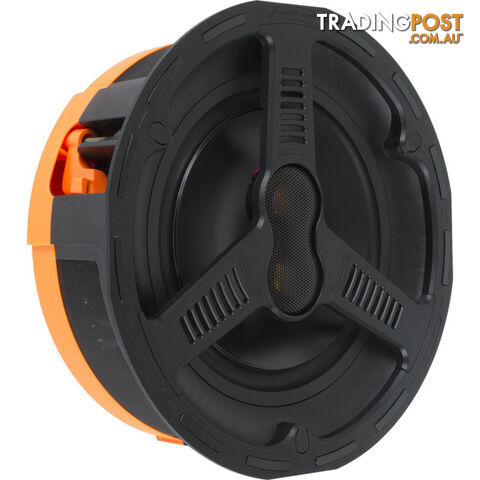

AWC280- T2 SINGLE STEREO ALL WEATHER- 2 WAY IN-CEILING SPEAKER Anodised black for stealthy in-wall/ceiling integration, the C-CAM bass drivers combine co-axially with Monitor Audio’s renowned 1" C-CAM tweeters, which are twinned and angled on theAWC280-T2to deliver high performance stereosound from a single unit where space is limited.   TECHNOLOGY High Performance C-CAM bass and high frequency drivers Stainless Steel ‘Trimless’ grille ? strong and resistant to corrosion Non-ferrous Samarium Cobalt magnets for grille attachment ? prevent rust and corrosion IP55 certified for extreme climate conditions: Salt Spray, UV stability, Water, Vibration, Anti-corrosion Patented Tri-grip Dog-leg fixings for easy, long-lasting installation EPDM barriers to prevent moisture. EPDM is an extremely durable synthetic rubber membrane (ethylene propylene diene monomer) Gold plated push terminals with silicon cover Stainless fixing screws with Silicone covers Tweeter level attenuation (internal) ? set prior to installation Applications: pool rooms, bathrooms, marine deck, universal outdoor installation   SPECIFICATIONS   Frequency response 50 Hz – 30 kHz Nominal Impedance 8 8 ohms Sensitivity (1W@1M) 88 db Maximum SPL 109dBA Power Handling (RMS) 100 Watt Recommended Amplifier Requirements 20-100 Watts Drive Unit Complement 8" C-CAMcone bass driver 2 x 1" C-CAMGold Dome tweeters (fixed angle) Adjustment Controls HF Level Switch ( 3 dB / 0 dB / -3 dB) - Adjustable at the point of installation Overall Diameter (Including Grille) 285 mm (111/4") Mounting Depth 97.55 mm (37/8") Cut-Out Hole Diameter 247 mm (93/4") Fixing Type 3 positionTri-Gripdog fixings Connection 2 X 2PR Gold plated ‘push’ type terminals Grille SS430 Stainless Steel Construction Material Mineral Filled PC-ABS Polymer (UL V0 Fire Retardant,RoHS2 Compliant) Weight 2.8 kg (6 lb 2 oz) Pre- Construction bracket CB8Pre-Construction Bracket (Green) Back Box CCBOX-R/CMBOX-R Custom product install guide PDF file CI overview PDF file
