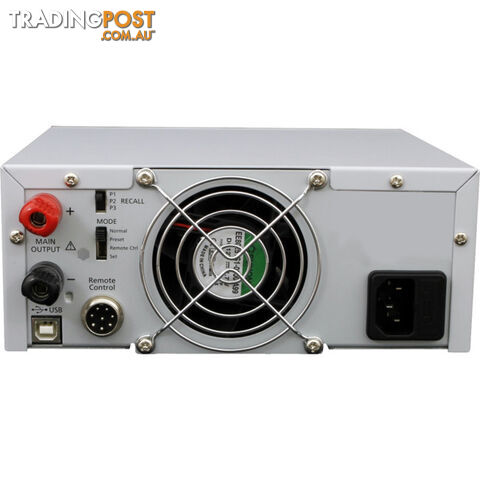

HCS3104 1-60VDC 2.5A LAB. POWER SUPPLY REMOTE PROGRAMMABLE

FEATURES Following up on the success of HCS series high power supplies, here comes up with this new range of low power supplies based on the feedbacks from end users. The new HCS3100 add an USB port for access to computer to run cyclical operation with programmable voltage, current, period time and cycles. The on-housing presets, separate remote control, rotary encoder dual action control for easy tuning of voltage and current, and all the features of the original HCS are kept. In addition it is of universal AC input voltage . It is probably the most cost effective Remote Programmable Power supply with such advanced features and protections. Itis ideal for laboratory, university, work shop, production, quality control and sophisticated DIY applications. FEATURES Remote Programmable via USB to computer 20 programmable sets of V, I & cycle periods for repetitive operation up to 999 cycles 3 user defined V & I panel presets for frequent use Analogue Remote Control of V, I, & output On-Off withoutcomputer Rotary encoder knob with definitive action of fine and coarse tuning Smart cooling fan speed control from zero to full speed Self diagnostic check on LED display and cooling fan on start up Isolated ground , Active PFC & high power efficiency Universal AC input Over load, Tracking Over Voltage Protections Constant Current limit setting with output open circuit SPECIFICATIONS Model HCS-3104 Output   Variable Output Voltage 1 - 60VDC Variable Output Current 0 - 2.5A Voltage Regulation   Load (10-90% Rated Voltage) ≤100mA Line(90-264VAC Variation ≤50mV Ripple & Noise Ripple & Noise (r.m.s) Voltage ≤5mV Ripple & Noise (peak-peak) Voltage ≤50mV Switching Frequency 100 - 120KHZ~ Tracking Over Voltage Protections O/P 1-5V: set voltage 2V O/P 5-20V: set voltage 3V O/P 20-60V: set voltage 4V Meter Type & Accuracy   Voltage Meter 3 Digit LED Display ±(0.2% 3counts) Current Meter 3 Digit LED Display ±(0.2% 3counts) Input Voltage 90 - 264VAC 50/60Hz~ Full Load Input Current (230VAC/100VAC) 1.0/2.0A Efficiency (230VAC/100VAC) ≥83% Power Factor Control Power factor correction >0.95 at optimal load Cooling Method Thermostatic Control Fan from Zero to full speed Protections Overload, Short Circuit by Constant Current, Output Tracking Over Voltage, Over Temperature Special Features 3 User defined V & I present, Analogue Remote Control V, I and output on-off Preset Cycle Programming Max. 20 presets of V & I, Max. preset time 100 mintues (99 min 60 sec), Max. preset cycle 999 Approvals C-TICK/ SAA for power supply Dimensions (WxHxD) 200x80x208 mm Weight 2.4Kg APPS FOR RASPBERRY PI Tablet PC becomes popular. MANSON thinks this will be a common platform for remote control console. MANSON prepares an application in iPad/Android for Power Supply remote control and Digital Power Meter remote monitoring. To enable MANSON USB ready devices to being managed in this platform, we use Raspberry Pi technology to make the connection happen. You can connect Manson Power Supply and DPM with USB portto Raspberry Pi B model. Then they can be remotely controlled through TCP/IP network from iPad/Android. To enable this feature, it just needs two things. Driver to run in Raspberry Pi. It can be downloaded in this page. iPad or Android apps. Search Manson Power Supply in Google Play or App store. Please follow instruction in file to configure driver in Raspberry Pi Version Note/ Description File Size Download Link Raspberry Pi driver installation steps 1.09M Download 1.0 This is driver for connecting Manson device to RaspberryPi through USB port. 27.91kb Manson_drive DOWNLOADS Raspberry PI driver Compressed file Manson universal PC control software (Ver 3.1.9) Compressed file Labview Example Compressed file Python Library Compressed file HCS PC software Compressed file HCS Low current LabVIEW Driver Compressed file Manson universal PC control software (3.1.7) Compressed file USB driver for Windows 7/8/8.1 Compressed file USB driver for Windows 10 Universal Compressed file HCS Trouble shooting list PDF file HCS LabVIEW example PDF file HCS VB 6 sample code PDF file HCS series catalogue PDF file HCS-3100/3102/3104 user manual PDF file PC software user manual PDF file VIDEO Manson App & Raspberry PI control HCS power supplies via Internet Video not loading? Watch it over at YouTube! Loading Manson App Driver to the raspberrypi Video not loading? Watch it over at YouTube! Weight: 2.95 kg Barcode Number: 9328202033277
