CIRA824W 8" 8"- 8 OHM IN CEILING SPEAKER AUDAC QUICK FIT - FAST CON

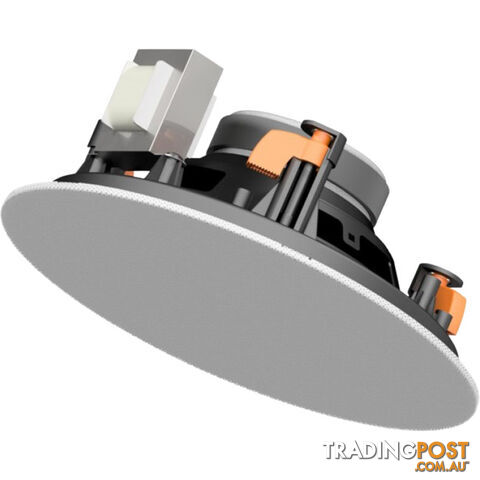

AUDAC CIRA824W QUICKFIT™ 2-WAY 8" CEILING SPEAKER WITH TWISTFIX™ GRILL Designed to offer the best value for money ratio. The CIRA series are coaxial 2-way ceiling speakers featuringexceptional intelligibility and musical performance. The TwistFix™ borderless grill design offers easy but solid assembly and a completely seamless transition fromgrill to ceiling. This results in a perfect blend in to its environment. The QuickFit™ installation system combined with FastCon™ connector offers lifetime stability and greatinstallers convenience. The CIRA8 features a 8” driver using polypropylene cone material, combined with a 1” Mylar tweeter fittedwith a phase plug for excellent off axis performance. The selected materials guarantee a low distortion performance with smooth and flat frequency response. A continuous power handling of 40 Watt (RMS) and maximum power handling of 80 watt is achieved, while fitted with a multi-tapping 100V line transformer with tappings for 24W, 12W, 6W and an 8 Ohm connection.   KEY FEATURES TwistFix™ technology Tool-free connection Installer convenience 2-way loudspeaker design Weather durable design Invisible grill design   Max. Power 80 W RMS Power 40 W Sensitivity (1W/1m) 89 dB Speaker type 2-way coaxial Impedance 8 ? (CIRA824) 16 ? (CIRA840D) Connectors Multi-tap Fast-con™ connections Sound Pressure (Max. W/1m) @ 100 V 105 dB Frequency Response (± 3 dB) 40 Hz - 20 kHz Range (-10 dB) 33 Hz - 20 kHz Dispersion Conical 140° Drivers HF 1” LF 8” Line Transformer Tappings 1 24 W - 417 ? (CIRA824) 2 12 W - 833 ? (CIRA824) 3 6 W - 1667 ? (CIRA824) PRODUCT FEATURES Cut-out measurement 243 mm (Ø) Dimensions 270 x 82 mm (Ø x D) Weight 1.65 kg (CIRA840D) 1.75 kg (CIRA824) Operating temperature -20 °C ~ 60 °C Construction ABS Front finish Twist-Fix™ borderless finely perforated steel grill Built-in depth 82 mm Mounting QuickFit™ mounting system Colours White (RAL9003) (CIRA824/W & CIRA840D/W) Â
