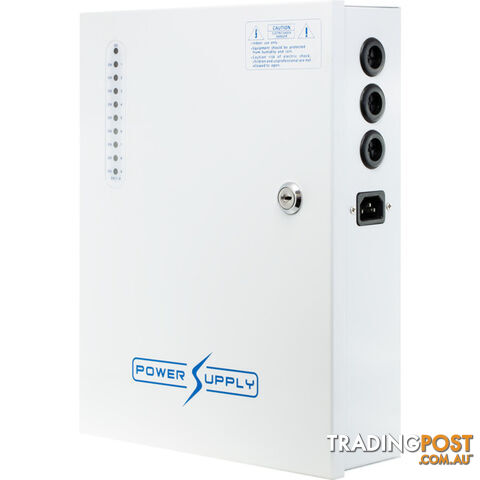

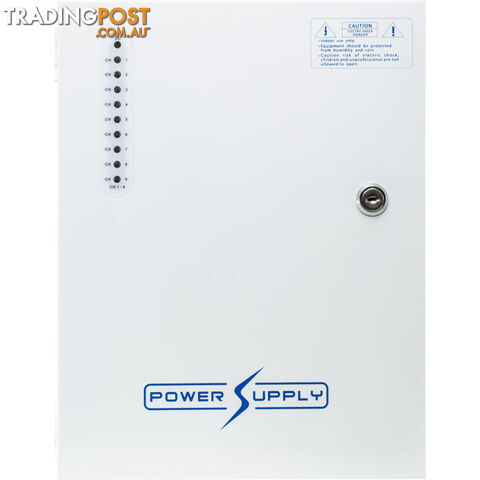

PWU0912W10 9 WAY 13.8VDC 10A POWER SUPPLY WITH UPS PFC SURGE PROTECTION

The Doss range power supply boxes also knows as a power distribution boxes offer a great power solution for CCTV system as well as other system powered by DC 12V. It enablessurveillance system installers to easily manage the power tomultiple CCTV cameras at a central point and allows your camera installation to be neater. The DOSS power supply boxes are very simple to install, simply screw each cameras power cable in to the power supply terminal in the power supply box. This model also comes with UPS function which can work together with the 12V 7A battery (Sold separately) to back up the power for the systemwhen the power is cut off. This product doesn't come with a K9 IEC lead. K9-2MT (27752115) is availabe for sale. FEATURES Full AC input range: 100~240V. Withstand 300VAC surge input for 5 seconds. Protection: short circuit / overload / over voltage / over temperature. Forced air cooling by built in DC fan when the currentexceeds 12A. Built-in cooling fan controlled by thermal-switch. Withstand 5G vibration test. Multiple DC outputs, and each channel has over current(PTC/Tube fuse) and surge protection. LED indicators show working condition of each channel and indicator for total output power on. 100% full burn-in test: full load burn-in test at low voltage AC110V, no-load burn-in test at high voltage AC240V and repeated switch of AC power at highvoltage AC240V. High opera??ng temperature is up to 70°C. Operating altitude is up to 5000 meters (note 8). High efficiency, long service life, high reliability. SPECIFICATIONS Output DC Voltage 13.8V Current 10A Power 138W Ripple and Noise ≤200mVp-p Voltage ADJ. Range 13.8V±10% Voltage Accuracy ±10% Set-up Time 1500ms, 50ms/230VAC 1500ms, 50ms/115VAC(at full load) Hold up Time 15ms/230VAC 12ms/115VAC(at full load) Input Voltage Range 100V~240VAC Frequency Range 47~63Hz Efficiency (Type) 80%~95% Protection Over Load 105%~150% (rated load) Over Voltage 115%~150% (rated output voltage) Shorted Circuit Fuse Tube Environment Operating Temp. & Hum. -10°C~45°C; 20%~90%RH (non-condensing) Storage Temp. & Hum. -25°C~ 70°C20%~95% Others Dimension (L*W*H) 324.5*251.5*80.5mm Packing 370*250*85mm Cooling method Free Air Convection Net weight 2420 g DOSS WALL MOUNTING BOX POWER SUPPLY RANGE Model Ways Output Voltage Output Amp. With UPS 33774960 PW0412B05 4 12V DC 5A No 33774965 PW0812B10 8 12V DC 10A No 33774990 PW1612B16 16 12V DC 16A No 33775000 PWU0412W05 4 12V DC 5A Yes 33775006 PWU0912W10 8 12V DC 10A Yes 33775015 PWU1612W16 16 12V DC 16A Yes Weight: 2.85 kg Barcode Number: 9328202031808
