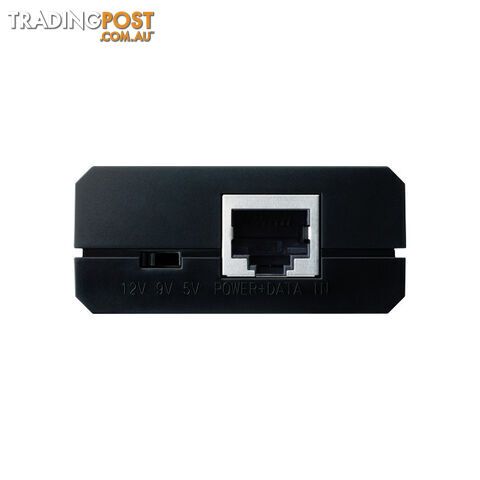

TLPOE10R POE SPLITTER 100MT RANGE 5VDC/ 12VDC OUTPUT

TL-POE10R POE RECEIVER ADAPTER - TP-LINK The PoE Receiver Adapter TL-POE10R fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PSE (Power Source Equipment) or PoE Supplier Adapter, such as TP-LINK’s TL-SF1008P or TL-POE150S, or other equivalent product, to deliver 12V or 5V Direct Current to where there are no power line or outlet, where you wish to fix a non-POE compliant device such as AP, IP Camera or IP Phone, etc. IEEE 802.3af compliant Delivers power over 100 meters Can switch between 12V DC or 5V DC power supply output Plug-and-Play, requires no configuration   Standards and Protocols  IEEE 802.3, 802.3u, 802.3af  CSMA/CD, TCP/IP Basic Function  Compatible with IEEE 802.3af compliant PSEs  Delivers power up to 100 meters  Optional 12VDC or 5VDC power supply  Plug-and-Play Ports LAN Port  1 10/100M Auto-Negotiation RJ45 port (Auto MDI/MDIX) PoE Port  1 10/100M Auto-Negotiation RJ45 port (Auto MDI/MDIX) Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum100m)  EIA/TIA-568 100¦¸ STP (maximum 100m)  100BASE-TX: UTP category 5, 5e cable (maximum 100m)  EIA/TIA-568 100¦¸ STP (maximum 100m) LED Indicator  PWR Safety & Emission  FCC, CE Dimensions (W*D*H)  3.2*2.0*0.9 in.(81*52*24 mm) Environment  Operating Temperature: 0¡æ~40¡æ (32¨H~104¨H)  Storage Temperature: -40¡æ~70¡æ (-40¨H~158¨H)  Operating Humidity: 10%~90% non-condensing  Storage Humidity: 5%~90% non-condensing Power Output  12W (12VDC) or 11.5W (5VDC) DATA SHEET Compressed file USER GUIDE PDF file Weight: 0.2330 kg Barcode Number: 6935364030490
