MX82 8CH 1RU STEREO MIXER 8IN /2OUT 4 X XLR / 4 X RCA INPUTS

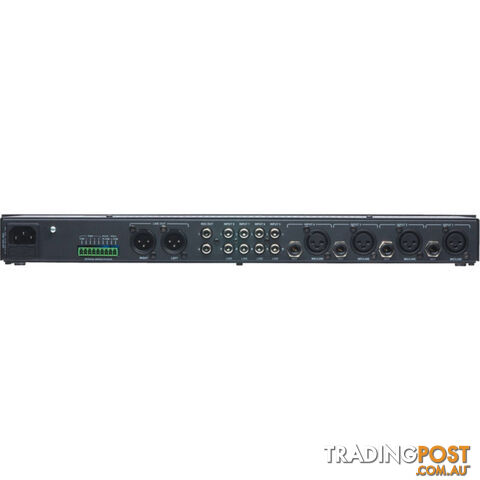

AUSTRALIAN MONITOR MX828 CHANNEL STEREO MIXER 4 XLR, 4 RCA INPUTS The MX82 is a 1RU stereo mixer that features four mic/line inputs and four stereo inputs. Each of the four mic/line channels consists of a balancedXLR input switchable between mic and line level, 15dB of gain trim across the mic/line inputs plus individually switchable phantom power (15VDC). The first 4 channels also feature a line level direct output which can be used to feed additional amplifiers, mixers or recording devices. An internal dip switch allows the first 4 inputs to be routed to the direct output, the master outputs or both. Youcan also feed the optional tone generator (AMTONE1) to the direct outs if required. Input 1 can also be pre or post master if you require, allowing it to be used as a priority (or emergency) input. Inputs 5-8 are four dedicated stereo RCA aux/line level inputs.   KEY FEATURES 4 XLR inputs switchable between microphone and line level, each with direct output 4 stereo dual RCA line level inputs. Each input has front panel microphone/line switching (inputs1-4), treble and bass control, /-15dB of gain trim and dual colour status LED indication Single master volume control Phantom power individually switchable for XLR inputs Priority muting via optional muting modules (AMMUTE1 or AMMUTE3). 2 required. Remote Volume Controlled Attenutation (VCA) via optional module (AMVCA). 2 required. Tone generation via optional module (AMTONE1)   SPECIFICATIONS Total Inputs 8 Frequency Response 20Hz - 20kHz Input Channels 8 MIC or Line THD N 90dB Mounting 1RU Input Sensitivity MIC: 4.36mV / Line: 775mV / RCA: 200mV Warranty 5 years Input Voltage 230Vac 50Hz Product Dimensions (W x D x H) 482mm x 182mm x 44mm Shipping Dimensions (W x D x H) 500mm x 267mm x 94mm Net Weight 2.8 Kg Shipping Weight 3.8 Kg GTIN EAN 932338301110 Â
