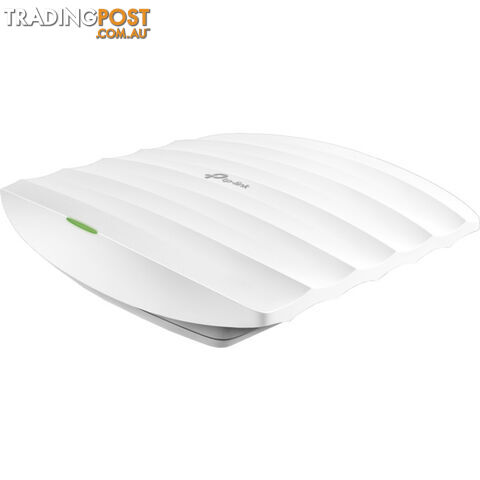

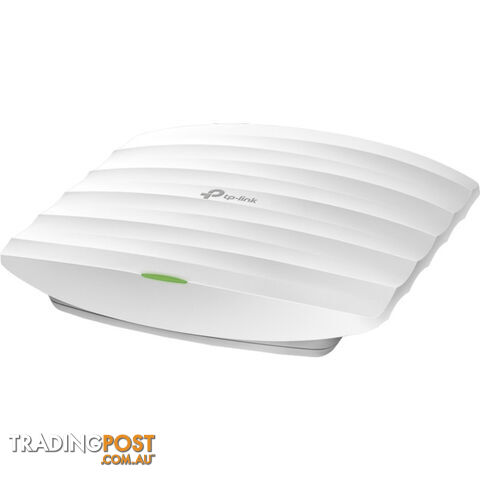

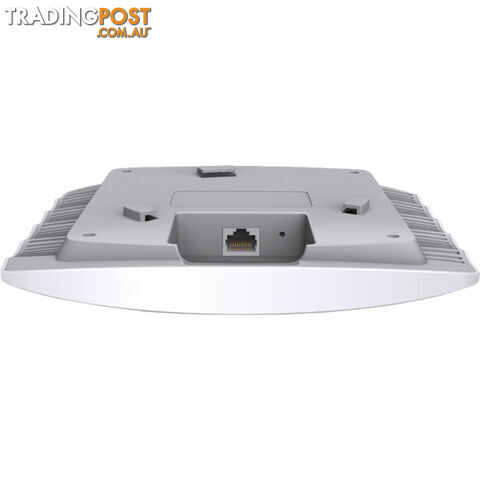

EAP110 N300 WIRELESS CEILING MOUNT AP ACCESS POINT

OVERVIEW 300MBPS WIRELESS N CEILING MOUNT ACCESS POINT Flexible Placement with Easy mounting design & PoE The EAP’s “ceiling lamp” appearance and easy mounting design with chassis make it easy to be integrated seamlessly into any wall or ceiling surface to blend in with most interior decorations. EAP110 support Passive PoE to make deployment effortless and flexible. Business Class Wireless with Powerful Hardware EAP110 features 802.11n Wi-Fi and 2*2 MIMO technology, wireless speeds of up to 300Mbps With Qualcomm Atheros 560MHz chipsets, EAP ensures incredible wireless coverage and reliability Free Centralized Management Platform with EAP Controller Software EAP Controller Software enables users to manage hundreds of TP-LINK’s EAPs simultaneously and easily from PCs in the network, making centralized business Wi-Fi management efficient, visible and more cost-effective like never before. Efficient Guest Authentication Captive Portal Captive portal provides one convenient method of authentication for Wi-Fi guests. A captive portal requires users to perform certain actions before network access is allowed. The required action must be verified by an external portal server or customized database by the administrator, which can be simply viewing and agreeing to an acceptable use policy, or entering a user ID and password. Applicable to Multi-user Environment, Designed for Business Performance With easy mounting design, PoE power supply, Cluster feature, Centralized management software, Captive portal, Auto RF management, and business hardware, EAP series are specially designed for the high-density, most demanding business environments, including schools, hotels, and enterprises. FEATURES EAP Controller Software enables administrators to easily manage hundreds of EAPs Support Passive PoE for convenient and affordable installation Simple mounting design to easily mount to a wall or ceiling 300Mbps wireless data rate for uninterrupted wirelessconnection Captive portal provides one convenient method of authentication for Wi-Fi guests Rate limit on per SSID to restrict the bandwith of each client Access Control restricts or allows the client to access the specified network segment Reboot Schedule enables all the APs to be rebooted automatically within a specified time WPA/WPA2-enterprise, 802.1X with RADIUS secure authentication and rogue access point detection ensure the security of WLAN Multi-SSID divides multiple wireless network for different users Load balance ensures large numbers of users have smooth network experiences in large business networks Compatible with 802.11 b/g/n products Adopts Low Smoke Zero Halogen (LSOH) materials for UL2043 compliance Multiple operating modes satisfy different application conditions including managed AP and standalone AP modes QoS function prioritizes data, voice, and video applications to ensure time-sensitive traffic takes priorityover all other traffic Prevents dust from dropping onto the PCB through bypass louver, which ensures long-term, unhindered operation. SPECIFICATIONS HARDWARE FEATURES Interface Fast Ethernet (RJ-45) Port *1(Support Passive PoE) Button Reset Power Supply 24VDC / 1A Passive PoE Supply Power Consumption 7.7W Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b Dimensions ( W x D x H ) 7.1 x 7.1 x 1.9 in. (180*180*47.5mm) Antenna Type Internal 2* 3dBi Omni Mounting Ceiling /Wall Mounting (Kits included) Physical Security Lock Kensington Lock Slot Watch Dog Yes WIRELESS FEATURES Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b Frequency 2.4-2.4835GHz Signal Rate 11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic) Reception Sensitivity 300M: -71dBm@10% PER 150M: -75dBm@10% PER 54M: -78dBm@10% PER 11M: -93dBm@8% PER 6M: -92dBm@10% PER 1M: -96dBm@8% PER Wireless Functions Multiple SSIDs (Up to 8 SSIDs) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client Wireless Security Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support 64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK /WPA2-PSK Transmission Power CE:
