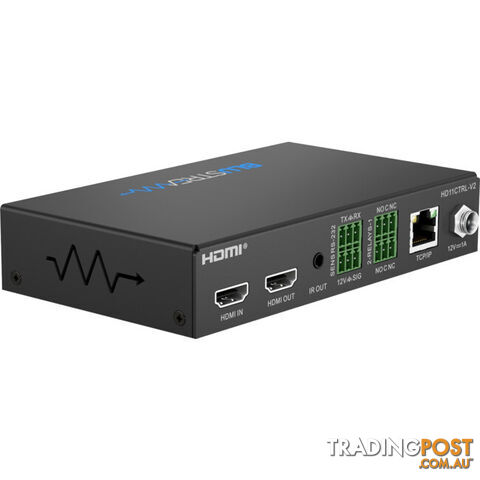

HD11CTRL-V2 HDMI INLINE CONTROLLER WITH TCP/IP, IR, RS-232, CEC - SIGNAL SENSING - 12V TRIGGER OUTPUTS

BLUSTREAM HD11CTRL-V2 - HDMI IN-LINE IP CONTROL MODULE Our HD11CTRL-V2 HDMI in-line controller is a innovative single zone automated control solution. With multiple configuration options, this unit includes RS-232, IR or IP command triggers, display on / off control via CEC, and HDMI signal sensing. External relay inputs allow 3rd party triggers for integration with devices such as sensors or switches. The addition of a web-GUI allows for simple configuration and advanced management and distribution of 3rd party commands and automated processes. The HD11CTRL-V2 will also help with HDMI compatibility, HDCP 2.2, clock stretching, EDID and handshaking issues that can cause problems when distributing HDMI signals, especially 4K. The HD11CTRL-V2 supports full HDMI 2.0 and HDCP 2.2, with video resolutions up to and including 4K @ 60Hz 4:4:4. KEY FEATURES Automated in-line HDMI control module supporting up to 10 macros, with up to 10 command functions per macro Supports HDMI 2.0 18Gbps specification including HDR Supports resolutions up to 4K UHD 60Hz 4:4:4 Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission Features Smart-Scale technology to convert 4K input signal to 1080p output (Note: 4:2:2 colour space not supported) Can help to solve most HDMI EDID, HDCP, compatibility, and handshaking issues Automatic display control via CEC, RS-232, IR or IP IR learning up to 30 IR commands Relay control for interface to third party devices such as projector screens Signal sense input for connection from third party devices such as sensors or switches HDCP 2.2 compliant with advanced EDID management In-built web-GUI for configuration and control SPECIFICATIONS Video Input Connectors: 1 x HDMI Type A, 19-pin, female Video Output Connectors: 1 x HDMI Type A, 19-pin, female RS-232 Serial Port: 1 x 3-pin Phoenix connector TCP/IP Control Port: 1 x RJ45, female IR Output Port: 1 x 3.5mm mono jack Relay Control: 2 x 3-pin Phoenix connector Sensor Input: 1 x 3-pin Phoenix connector EDID Selection: 4-pin DIP Switch Product Upgrade: 1 x USB Type A, female Dimensions (W x H x D): 145mm x 28mm x 84mm Shipping Weight: 1.0kg Operating Temperature: 32 F to 104 F (0 C to 40 C) Storage Temperature: - 4 F to 140 F (- 20 C to 60 C) Power Supply: 12V/1A DC BOX CONTENTS 1 x HD11CTRL-V2 1 x 12V/1A DC Power Supply 1 x IR Emitter 1 x RS-232 Control Cable 1 x Mounting Kit 1 x Quick Reference Guide
