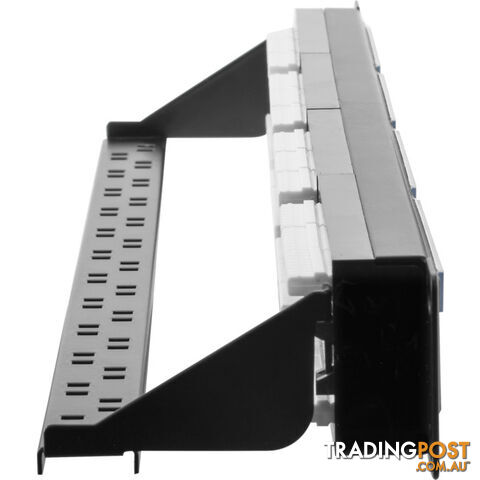

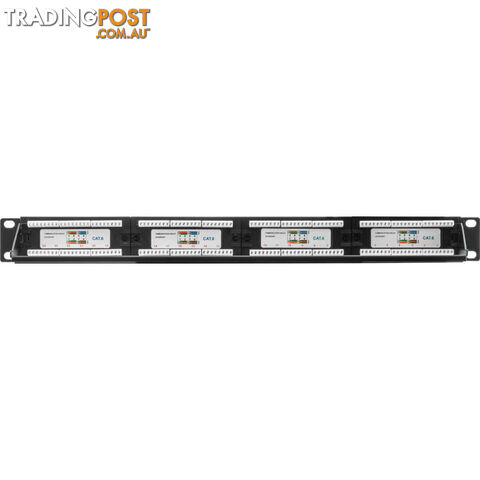

PPC624 24 PORT CAT6 PATCH PANEL TE TECH

CAT6 METAL PATCH PANEL FEATURES: Patch panel case, metal 1U RJ45 Jack Body: PC UL94V-0 rated. Colour: Black, other colours available MOQ Contacts: Phophor Bronze, 50u” Gold plated over Nickel plated in contact area. Tin-lead over Nickel in solder area. Connector: 110 connector body: PC UL94V-0 Colour: Ivory Contact: Phosphor Bronze with Tin plated P.C. board: FR4, 1.6mm double side, UL94V-0 Operation temperature: 0˚ to 80˚C Insertion force: 900gms for 8 contacts Retention strength: 7.7kgs between jack and plug Durability: 750 cycles contact resistance test check every 100 cycles. Insertion cycles at 20 cycles/minute max. Certificates: ETL verify, UL listed, ANSI/TIA/EIA-568-B.2 SO/IEC 11081 class E, FCC Weight: 0.7700 kg Barcode Number: 9312663124919
