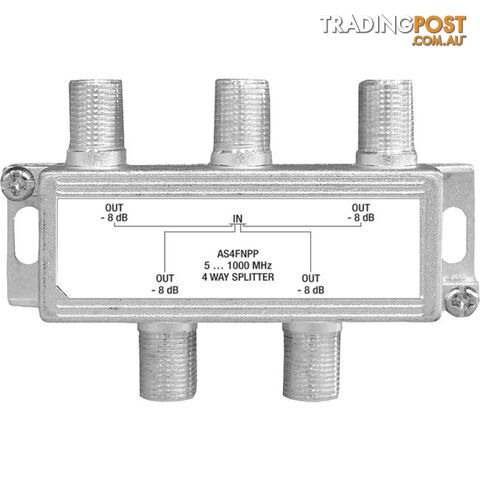

AS4FNPP 4 WAY F-TYPE SPLITTER FOXTEL APPROVED F30225

AS4FG2 4 WAY F TYPE SPLITTER 5 - 1000MHZ FOXTEL APPROVEDF30225 FEATURES: Superior intermodulation distortion and second harmonic performance Excellent return loss and port-to-port isolation in the return band Patented DSM seizure technology provides increased spring retention for better surface contact (patent#6450836) Gold-plated, beryllium copper construction for better corrosion resistance, impedance matching, and prevention of common path distortion 6 kV surge withstand, guaranteed second orderharmonics performance after 5 surges to each port of 6 kV (per IEEE.C62.41.1991 Category A3) Tin-plated back plate provides minimum -110 dB shielding effectiveness and superior defence against long-term corrosion factors -60 dBmV spurious signals and 2nd harmonics with a 55 dBmV input carrier Weather-sealed “F” ports Machine threaded, flat “F” ports SPECS: Nominal Impedance 75 Ohms Flatness (Tap & Out) 0.5 dB RFI -110 dB Spurious Signals Including 2nd Harmonics -60 dBmV measured with a 55 dBmV return input carrier (-45 dBmV, after 5 surges of 6 kV on eachport measured with a 55 dBmV return input carrier) Blocking Capacitors All ports Surge Withstand IEEE C62.41-1991 CategoryA3 (6000 V, 200 Amp, 0.5 s-100 kHz Ring Wave) Operating Temperature -40 to 60 C (-40 to 140 F) Frequency Insertion Loss Out-to-Out Isolation Input Return Loss Output Return Loss 5 - 15 MHz 7.0 42 29 33 16 - 42 MHz 6.9 44 34 36 43 - 65 MHz 6.9 44 35 35 66 - 250 MHz 6.9 41 29 31 251 - 450 MHz 6.9 35 28 31 451 - 550 MHz 6.9 33 28 31 551 - 750 MHz 7.3 32 27 30 751 - 860 MHz 7.3 31 27 29 861 - 1002 MHz 7.5 31 26 28 Weight: 0.0620 kg
