HEX70CS-TX HDBASET CSC TRANSMITTER HDMI 2.0 4K 60HZ 4 4 4

HEX70CS-TX


HDBaseT™ CSC Transmitter Supporting HDMI2.0 4K60Hz 4:4:4 up to 40m (1080p up to 70m), Bi-directional IR & RS-232, EDID Management, HDMI Loop-Out, Audio Breakout, Bi-directional PoH (PoE), HDCP2.2

DESCRIPTION

Blustreams HEX70CS-TX HDMI2.0 4K60Hz 4:4:4 (18Gbps) HDCP2.2 HDBaseT™ extender set offers market leading features and outstanding value utilising CSC technology.

The product Transmits HDMI, Bi-directional IR & RS-232 and Bi-directional PoH (PoE) up to lengths of 70m (4Kto 40m).

The Transmitter includes a HDMI loop-out for integrating local displays or cascading to multiple devices.



KEY FEATURES
Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
Advanced Colour Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDR
Supports 4K 60Hz 4:4:4 UHD video up to 40m
Extends HDMI 1080p video up to 70m
Features 1x HDMI loop-out on HEX70CS-TX for integrating local displays or cascading to multiple devices
Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:Xtransmissions
HDMI re-clocking on the HDBaseT™ Receiver to help solve HDMI HDCP, compatibility and handshaking issues
HDMI audio breakout to analogue L/R audio and coaxial digital outputs concurrently
Supports bi-directional RS-232 pass through
Supports bi-directional IR pass through
Supplied with Blustream 5V IR receiver and emitter
Advanced EDID management
HDCP2.2 compliant
SPECIFICATIONS

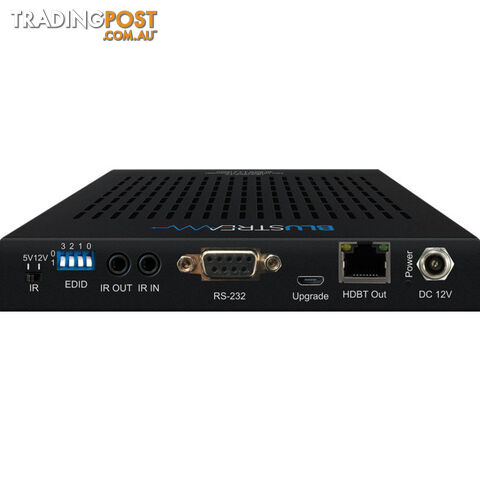

HEX70CS-TX transmitter

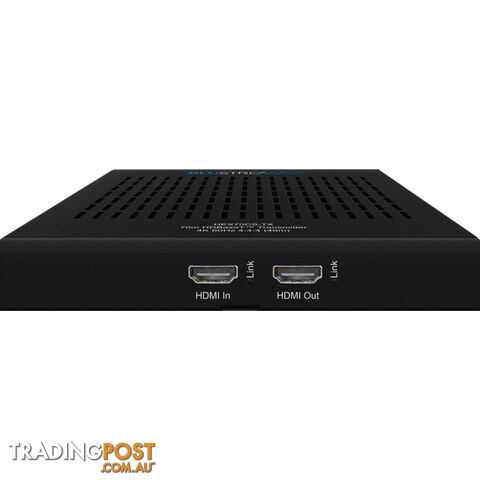

Video Input Connectors: 1x HDMI Type A, female
Video Output Connectors: 1x HDBaseT™ RJ45 connector, 1x HDMI Type A, female
RS-232 serial port: 1x DB-9 female
IR Input ports: 1x 3.5mm stereo jack
IR Output ports: 1x 3.5mm mono jack
EDID DIP switch: 4-pin



Power Supply: 12V / 2A DC, screw type connector
Power Consumption: 12.7W
Transmitter Dimensions (WxDxH): 143 x 134 x 22mm (without connections)
Transmitter Dimensions (WxDxH): 143 x 141 x 22mm (withconnections)
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature: -4°F to 140°F (-20°C to 60°C)
Mounting kits included






Weight: 0.6000 kg
Barcode Number: 9340242003300
