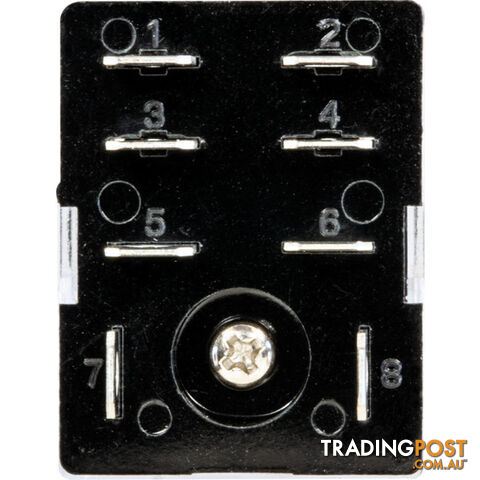

RET208A 240V AC 10A DOUBLE POLE RELAY 10A 250V AC / 30V DC

240V AC DOUBLE POLE 10A RELAY Application : Vending Machine, Cooking Appliances, OfficeMachine, Domestic Appliances, Control Equipment, etc. FEATURES: 1 Pole to 4 Poles versions are available with switching current at 15 Amps (1 Pole) and 10 Amps (2-4 Poles). Solder Lug Terminal and Flanged Case are designed for direct panel mounting use. Low coil power consumption with high response time. High reliability and long life with better vibration and shock resistance. 1/3 Horse power on RET 2 Poles series are certifiedby UL. Touch Button and LED version are available for customer’s selection SPECIFICATIONS: 10A 250V AC / 30V DC Contact Resistance.............100 mΩ Max.@1A,6VDC Operate Time.......................25 mSec. Max. Release Time......................25 mSec. Max. Dielectric Strength : Between Coil & Contact......1,500VAC at 50/60Hz for one minute. Between Contacts...............1,000VAC at 50/60 Hz for one minute. Surge Strength....................3,000V (between Coil & Contact 1.2x50μSec.) Insulation Resistance..........100 MegaΩ Min. at 500VDC. Max. On/Off Switching : Electrical..............................6 Cycles per Minute. Mechanical..........................300 Cycles per Minute. Temperature Range.............-25 - 55°C Humidity Range...................45 - 85% RH. Coil Temperature Rise.........60°C Max. Vibration: Endurance...........................10 to 55 Hz dual amplitude width 1.5mm. Error Operation....................10 to 55 Hz dual amplitude width 1.5mm. Shock: Endurance .........................1,000 m/S2. Error Operation....................100 m/S2. Life Expectancy : Mechanical .........................100,000,000 Operations at No Load condition. Electrical ............................1,000,000 Operations at Rated RET Resistive Load. Weight: 1-2P :About 35 g. 3P :About 53.2g. 4P :About 66.5g. Safety Standard & Its File Number C-UL (1-pole & 2-pole)........E141060 Weight: 0.0350 kg
