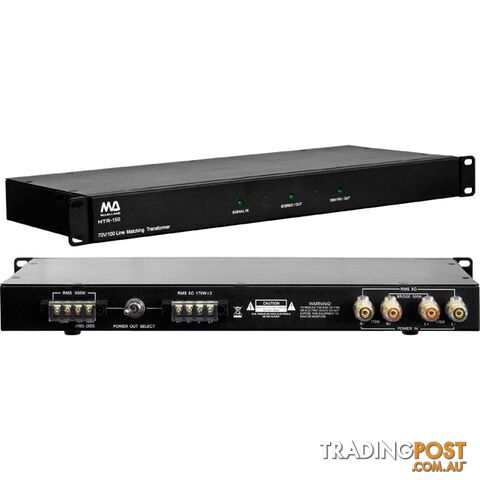

MTR150 70V/100V LINE CONVERTER TRANSFORMER COMBINER MATCHING

MTR150 ZONE2/ ZONE3 100V Converter Put simply, the MTR150 converts your amplifiers speakeroutput to a 100V line. Today most receivers are equipped with 7 amplifiers (7.1ch). 5 amplifiers and a subwoofer (.1ch) output are designated to the home theatre room. That leaves 2 channels to your second zone. Often Zone2 and Zone3 outputs are restricted, such as: Low impedance outputs This results in shorter run cabling (less than 30m) Cabling is expensive for most mid-range jobs Output is in stereo This means speakers have to be positioned to the left and right of the listener We developed the MTR150 as the solution to these Zone2/Zone3 issues. It converts the speaker output to 100V line allowing for: Massive cable runs (100 meters) Daisy chain cabling A cost-effective and easy solution Mono output Negating the need to position speakers on the left andright side of the listener. No power required The large torodial transformer draws the necessary powerfrom your audio source. FEATURES: Housed in a rugged 1U metal chassis rack mount design Internally mounted constant votage transformer Selectable output mode between 70V/100V output and 8Ohm Output Signal in, stereo out, 70V/100V out LED indicators Input and output PTC over current protection Input RF filter osillation protection Rated input power:50W stereo per channel @ 8 Ohm,150W Bridge,mono 70V/100V output THD N:0.1% @ rated power Weight: 3.61 kg
