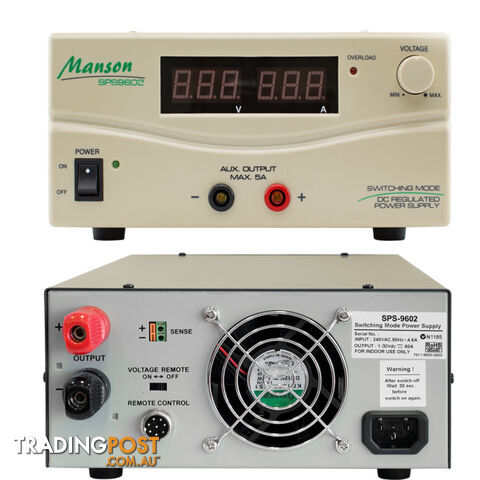

SPS9602G 1-30V 30A DC POWER SUPPLY SWITCHMODE BENCH TOP DARK GREY

This high current switching mode DC regulated output power supply is designed with a highly efficient active power factor corrector. The constant current limiting protection allows the output current to remain stable but the output voltage decreases to a level that permits safe operation of the power supply. The remote sensing terminals are used to compensate for output line losses 80 that a precise regulation can be achieved for critical voltage application away from the power supply. The output voltage level and ON-OFF can be externally controlled via the remote terminal. It is ideal for applications that need good quality highDC current network with precise point of voltage regulation. SPS-9602 has a small footprint for its 900W continuous maximum power. It is suitable for a wide range of applications such as street blaster super high power car audio demonstration console, radio equipment and etc. Features: Total max. continuous output current 30A Main Output/Remote Sensing/ Remote Control/ terminalsat the back Front terminals  3A limiting. ( Precise Load Point Voltage ) Remote Sensing for remote point of regulation. Remote control terminals for output voltage adjustment and*on/off" 29HR Count Down Timer (Optional) for Output ON/OFF Floating Ground Design Overload / Over-temperature / Short Circuit Protections Constant Current mode with LED indicator prevents overloading Variable speed thermally controlled fan High RFI stability Active power factor correction ( P.E >0.97 ) Specifications: Variable Output Voltage: 1- 30Vdc Total Rated Output Current (Main Output Front Output):  30A Rated Output Current (Main Output):  30A Rated Output Current (Front Output):  3A Load Regulation (Main Output): 0.1% 5mV Line Regulation (Main Output): 0.05% 3mV Ripple & Noise (Peak-Peak): 50mVp-p Input Voltage: 230Vac , 50Hz- Efficiency: >85% Meter Type: LED Meter Voltmeter Range: 3 digit display Ammeter Range: 3 digit display Meter's Accuracy: ±I% 1 count Protection Devices: Overload (Constant Current Limiting), Over Temperature, Short Circuit, OVP protections Cooling System: Variable speed thermally controlled fan Special Feature: Remote sensing, Remote output voltage control and *on/off* Approvals CE EMC : EN 55022 , LVD : EN 60950 Dimensions (W:x H xD): 220 x 110" 360 mm (8.7" 4.3" 14 in.) Weight: 5.8kgs ( 12.81bs ) Remarks: Power factor correction >0.95 at optimal load Need a different current or voltage? See our complete list of over one-hundred DC power supplies. Barcode Number: 9328202033338
