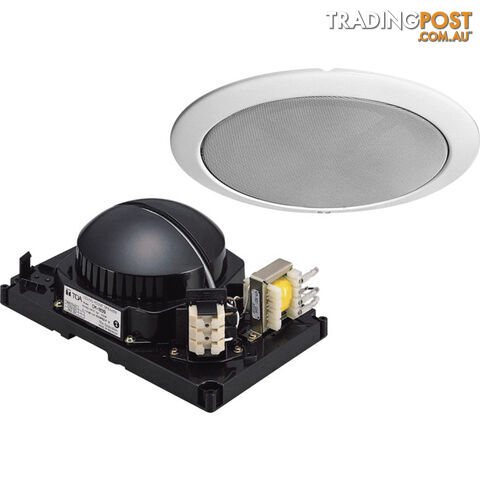

CM760/CP77 12CM 6W 100V SPEAKER W/ GRILLE TOA CEILING SPEAKER

CM-760 SPEAKER & CP-77 GRILLE The CM-760 speaker allows selection of most suitablefront panel out of the CP-70 series panels (optional) depending on the installation place. Thanks to its coil spring catch method, the panel can be easily attached to the speaker. The CM-760 comes with a push-in connector which permits instant wire connection for bridging and branch wiring. The speaker is protected by a hard speaker cover. Specification Rated Input 6 W Rated Impedance 1.7 kΩ (6 W), 3.3 kΩ (3 W), (6.7 kΩ (1.5 W), 13 kΩ (0.8 W): Internalwiring must be changed) Sound Pressure Level 90 dB (1 W, 1 m) Frequency Response 100 - 16,000 Hz Speaker Component 12 cm dynamic cone-type speaker Dimensions for Fixing Hole Φ150 (mounting hole) × 50 (ceiling thickness) mm Speaker Mounting Method Spring catch Applicable Cables 600 V Vinyl-insulated cable (IV wire or HIV wire) Solid copper wire: Φ0.8 - Φ1.2 mm 7-core twisted copper wire: 0.75 - 1.25 m? Connection Push-in connector (Bridging and branch connectionspossible.) Finish Grille: Fire-resistant, high-impact styrene resin (resin material grade: UL94 V-O or its equivalent), black Dimensions 215 (W) × 134 (H) × 89 (D) mm Weight 630 g Applicable Panel CP-77 Do not use the speaker with heat insulating material sound absorbing material mounted. Ensure thatthe speaker is kept away from the heat insulating material. CP-77 The CP-77 grille can easily be attached to the CM-760 speaker by means of coil springs. Because it is thin in thickness and white in color, it blends with any ceiling. In addition, cleaning is easy because the net is painted metal. Specification Speaker Mounting Method Spring catch Finish Frame, net: Aluminum, off-white, paint Dimensions Φ180 × 11 (D) (exposed section) mm Weight 70 g Applicable Speaker CM-760,     Weight: 0.6880 kg
