TX3350UVP TX3350 ULTIMATE VALUE PACK GME

FEATURES

TX3350UVP TX3350 ULTIMATE VALUE PACK - GME

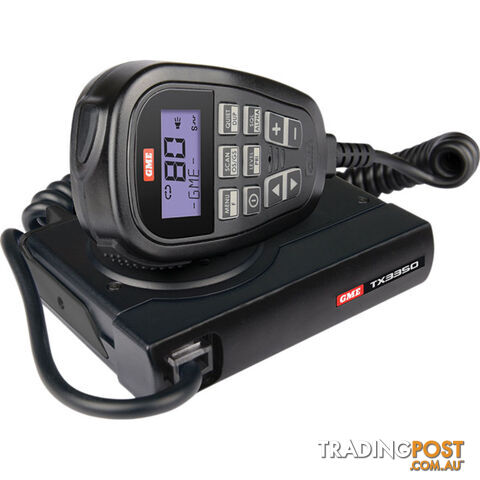

Super Compact UHF CB Radio with LCD SoundPath? Speaker mic The TX3350 is an 80 channel, feature packed super compactUHF CB radio with the new SoundPath? full function LCD Speaker Microphone. The challenge was to create a unique solution that allowed a full function LCD Microphone that could house a built in speaker with clear audio all within a compact and ergonomic design. SoundPath? diverts the audio through a unique convex path around the microphone bollard, whilst maintaining the compact size. The TX3350 combines the unique combination of space saving benefits of a super compact size radio and full function speaker microphone all in the palm of your hand. The radio can now be discretely installed in almost any location within a vehicle and without the need for extensionspeakers. FEATURES: Powered by Pure Sound DSP engine Full spectrum backlit LCD microphone with Soundpath speaker User selectable open and group scan User adjustable squelch User selectable duplex channels User selectable priority channel 104 in-built DCS codes 50 in-built CTCSS codes 5 digit selcall with quiet mode Five year warranty Australian design and manufacture

SPECIFICATIONS

Compliant SpecificationMeets AS/NZS 4365 for radio communications equipment in the UHF citizen and personal radio service. Frequency Range TX476.425 ? 477.4125 MHz Number of Channels80 UHF CB Channel Spacing12.5 kHz Operation Modesimplex channels 1-80, Semi Duplex channels 1-8, 41-48 Scanning Speed20 channels per second Antenna Impedance50 Ohms nominal Nominal Battery Voltage13.8 volts DC Operating Voltage Range10-15 volts DC Overvoltage Protection25 volts DC max At 18 volts DC the RF power is reduced, and the words ?Hi DC? flash. Overcurrent ProtectionIn-line 2A Fuse Frequency stability±2.5 PPM Modulation FM RF Output5.0 watts max Maximum Deviation

IN THE BOX

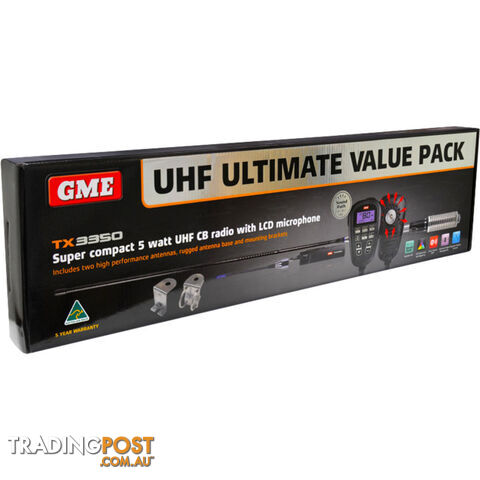

TX3350 Radio Unit LCD Speaker Microphone AE4018K3 Rugged Antenna Kit AE4002 Low Gain Replacement Antenna Whip MB407SS Universal "Z" Bonnet/Boot Antenna Mount MB024SS Universal Bull Bar Antenna Mount Microphone Clip Screw Pack DC Lead Mounting Cradle Instruction Manual



Weight: 2.37 kg
Barcode Number: 9319493258722
