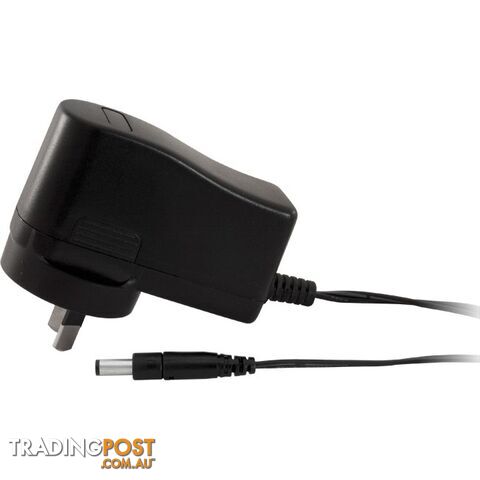

SM1503 15V 300MA DC POWER SUPPLY SWITCHMODE 2.1MM CEN +TVE

Input 1.1 Rated input voltage:100-240V AC 1.2 Vibration input voltage range:90-264V AC 1.3 Rated input frequency:60/50Hz 1.4 Vibration Rate input frequency:63/47Hz 1.5 AC input Rated current:0.2A Max .@100V AC 1.6 AC input Max power(No load):0.3W Max .@230V AC 1.7 Inrush Current:30A Max .@100VAC cool start 60A Max .@230VAC cool start 1.8 Leakage current:0.25mA RATING LABEL MaxOutput characteristics 2.1 Rating output voltage:15V 2.2 Rating output current:0.3A 2.3 Min. load current0A 2.4 Output noload voltage:15V±5% 2.5 Output load voltage:15V±5% 2.6 Output ripple & noise:200mV General characteristics 3.1 Max output power:4.5Watts 3.2 Efficiency:71%(min.)@full load & input 230VAC,Output set to 15V/0.3A. 71%(min.)@full load & input 115VAC,Output set to 15V/0.3A. 3.3 Short circuit protection:Protection against short circuit for output. The output can be shorted without damage. 3.4 Overshoot / Undershoot: 15V±10% 3.5 Switching Frequency:40 KHz Typical Environmental: 4.1 Operating temperature:0~40c 4.2 Storage temperature:?25 to to 85c 4.3 Operating relative humidity: 8% to 90% 4.4 Storage relative humidity:5% to 95% Weight: 73g PRODUCT SPECS PDF file Weight: 0.0820 kg Barcode Number: 9328202011725
