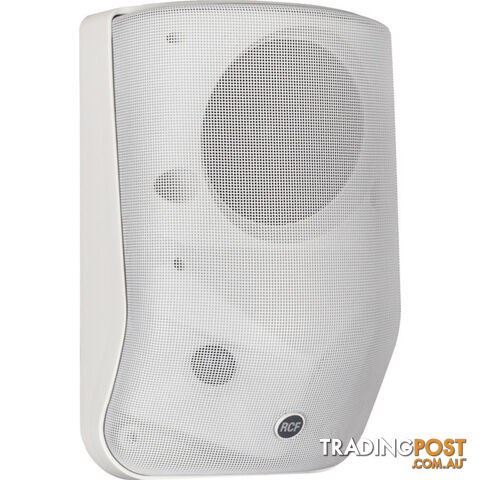

MQ60HW WHITE 2 WAY WALL MOUNT SPEAKER TWO HORN LOADED DOME TWEETERS

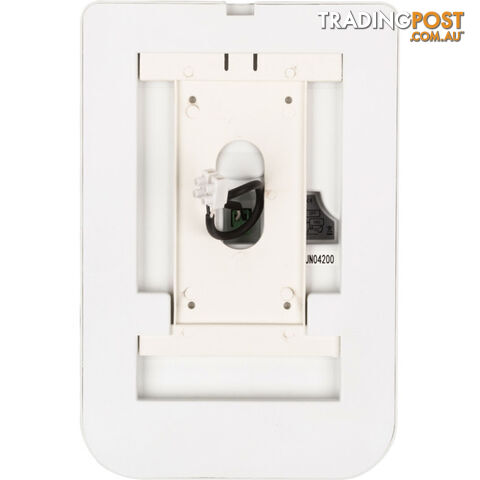

MQ 60H - WHITE 2 WAY WALL MOUNT SPEAKER The MQ60H is a wall mount monitor speaker designed to guarantee uniform coverage of a large area in order to limit the number of speakers and therefore the installation points. It is a two-way speaker with three transducers: the 5“ woofer and the two horn-loaded dome tweeters with constant directivity are positioned in such a way as to ensure the maximum listening comfort within the area covered. Installation is carried out in two phases: first, youmount the support on the wall and make the electrical connections; when all the works are completed, you insert the speaker and make a quick connection.   APPLICATIONS Music applications Audio visual applications Restaurants Places of worship Recreational facilities Shopping malls Pubs FEATURES Two way Bass reflex speaker for music reproduction Speaker composed by 5" woofer 5" and 2 x 1" dome tweeter Max output power 120 W Bypass configuration input 16 Ω, output power 60 W RMS 30W - 20W - 10W - 5W output power for 100 V line 15W - 10W - 5W - 2,5W output power for 70 V line 2600 Hz crossover frequencies with attenuation 12/12dB/oct Dynamic Protection on woofer and tweeter ACOUSTICAL SPECIFICATIONS Type of speaker:2 way bass reflex speaker Frequency Response:100 Hz - 19 kHz Max SPL @ 1m:109 dB Horizontal coverage angle:180° Vertical coverage angle:120° Power Handling:60 W RMS Peak Power Handling:120 W PEAK System Sensitivity:88 dB Impedance:16 Ω Crossover frequencies:2000 Hz TRANSDUCERS Speaker:5" Tweeter:2 x 1" INPUT SECTION Input connector:2 euroblock Constant voltage:100 V, 70 V Power Selection:30 - 20 - 10 - 5 W (100 V) CABINET Hardware:Body in self-extinguishing plastic Colour:White / Silver / Black Grille:Steel PHYSICAL SPECIFICATIONS Height:297 / 11.69 mm/inch Width:198 / 7.79 mm/inch Depth:122 / 4.8 mm/inch Net weight:2.85 / 6.28 kg/lbs SHIPPING INFORMATION Package height:340 / 13.38 mm/inch Package width:265 / 10.43 mm/inch Package depth:180 / 7.08 mm/inch Shipping weight:3.39 / 7.47 kg/lbs   Barcode Number: 8024530005498
